DG M5 000 18 058
Termékszám:
DGM500018058
11
DG M5 000 18 058
Termékszám:
DGM500018058
Adaptors / Holders; base: titanium

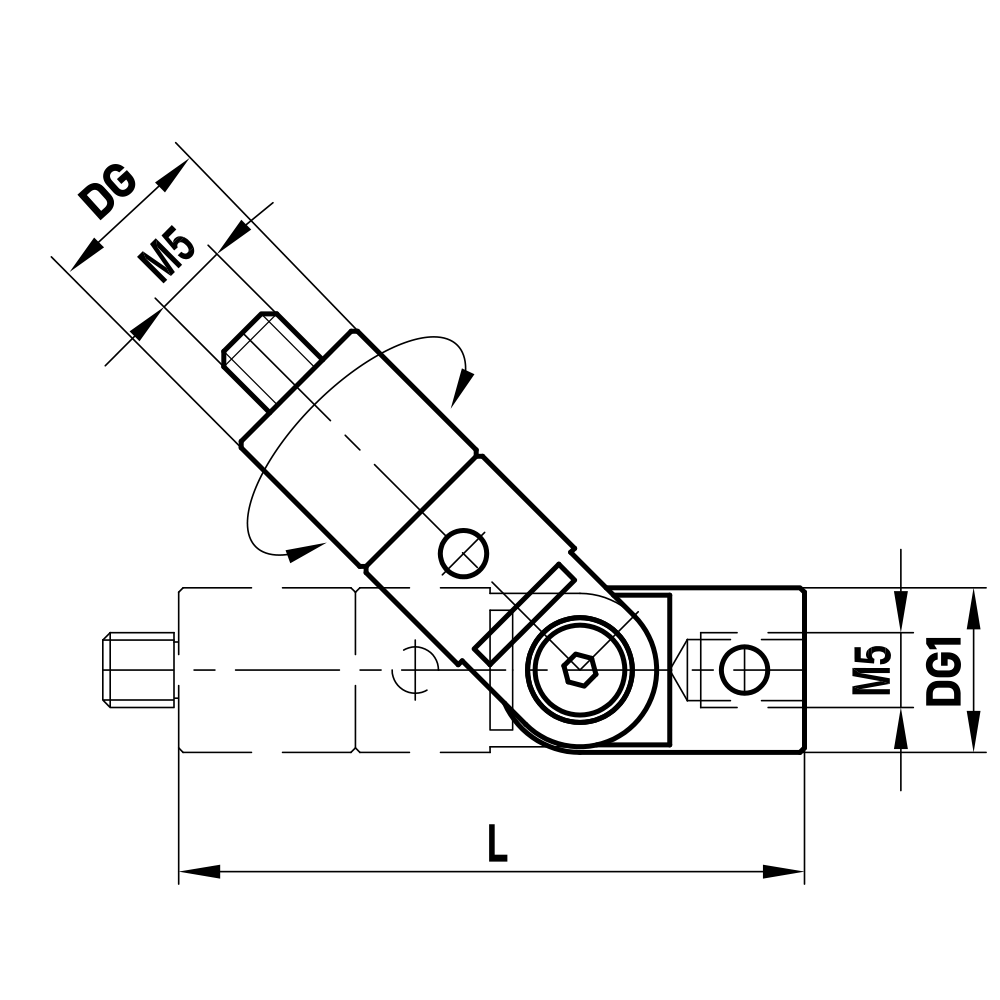

The swivel joint can be used to achieve any angular position between 90° and 180°. At the same time, it is possible to rotate the styli in relation to the machine or workpiece coordinate system. This element is very useful in combination with rigid measuring systems.
| Thread size: | M5 |
|---|---|
| L: | 58.0 |
| DG: | 18.0 |
| DG (1): | 18.0 |
| Base Material: | titanium |
| Súly: | 71.4 |
| Compatible with: | Renishaw |
| Renishaw-No.: | A-5003-5279 |
