DI M2 000 04 008
Termékszám:
DIM200004008
11
Suitable for Zeiss: 602030-9101-000
Suitable for Zeiss: 602030-9101-000
DI M2 000 04 008
Termékszám:
DIM200004008
Adaptors / Holders ; base: stainless steel
The knuckle can be used to achieve any angular position between 90° and 180°. At the same time, the stylus can be rotated relative to the machine or workpiece coordinate system. This element is very practical in conjunction with rigid measuring systems.

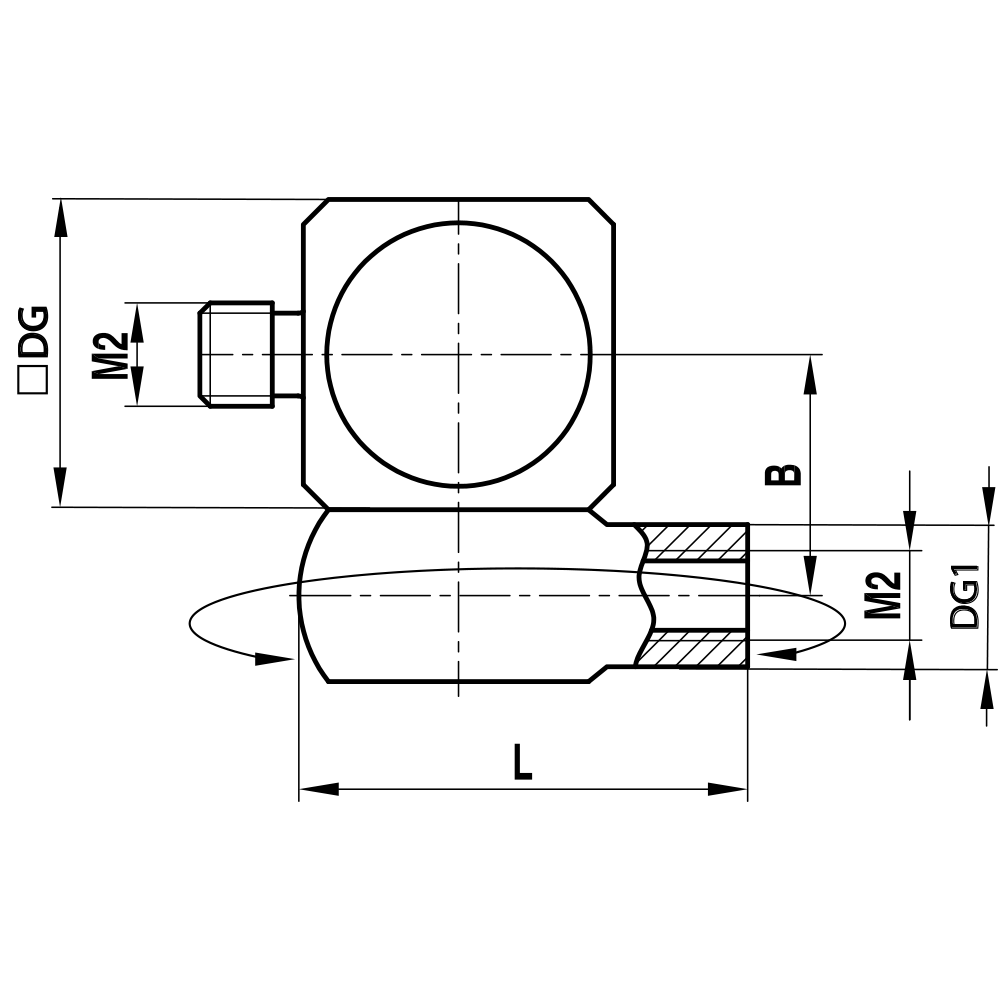

| Thread size: | M2 |
|---|---|
| L: | 8.0 |
| DG: | 5.5 |
| DG (1): | 3.0 |
| B: | 4.5 |
| Base Material: | stainless steel |
| Súly: | 1.6 |
| Compatible with: | Hexagon, Renishaw, Zeiss |
| Zeiss No.: | 602030-9101-000 |
| Renishaw-No.: | A-5000-7534 |
| Hexagon-No.: | 03969059 |
