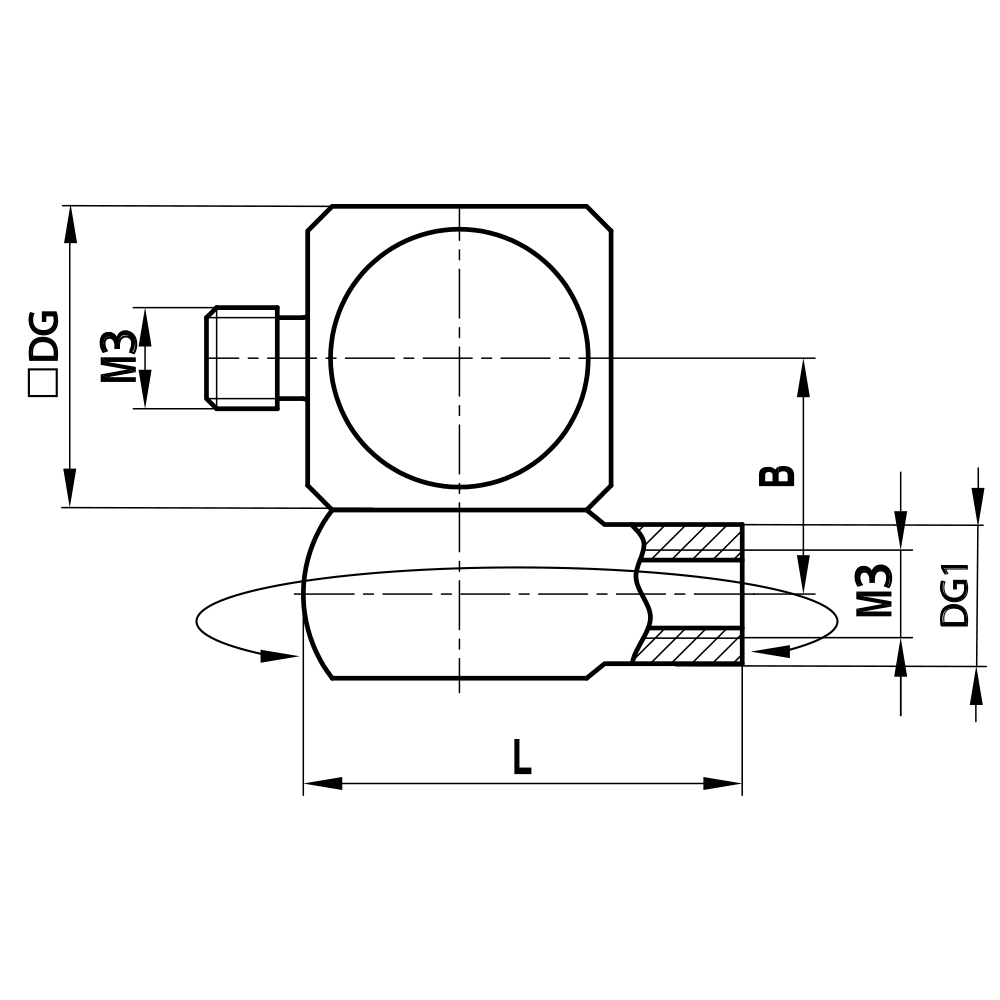

DI M3 000 06 012
Termékszám:
DIM300006012
11
Suitable for Zeiss: 602030-9102-000
Suitable for Zeiss: 602030-9102-000
DI M3 000 06 012
Termékszám:
DIM300006012
Adaptors / Holders; base: stainless steel
The rotatory adaptor can be used to achieve any angular position between 90° and 180°. At the same time, the stylus can be rotated relative to the machine or workpiece coordinate system. This element is very practical in conjunction with rigid measuring systems.
| Thread size: | M3 |
|---|---|
| L: | 12.0 |
| DG: | 7.5 |
| DG (1): | 4.0 |
| B: | 6.0 |
| Base Material: | stainless steel |
| Súly: | 4.1 |
| Compatible with: | Hexagon, Renishaw, Zeiss |
| Zeiss No.: | 602030-9102-000 |
| Renishaw-No.: | A-5000-7616 |
| Hexagon-No.: | 03969060 |
