DWT M5 000 15 032
Termékszám:
DWTM500015032
11
Suitable for Zeiss: 626105-6280-080
Suitable for Zeiss: 626105-6280-080
DWT M5 000 15 032
Termékszám:
DWTM500015032
Adaptors / Holders; base: titanium
Cubes are important components in metrology that enable flexible and accurate styli positioning. They are particularly useful for building L-shaped and multi-arm styli, which have a wide range of applications in different measurement configurations. This cube has an additional rotation function that allows the styli to be aligned.

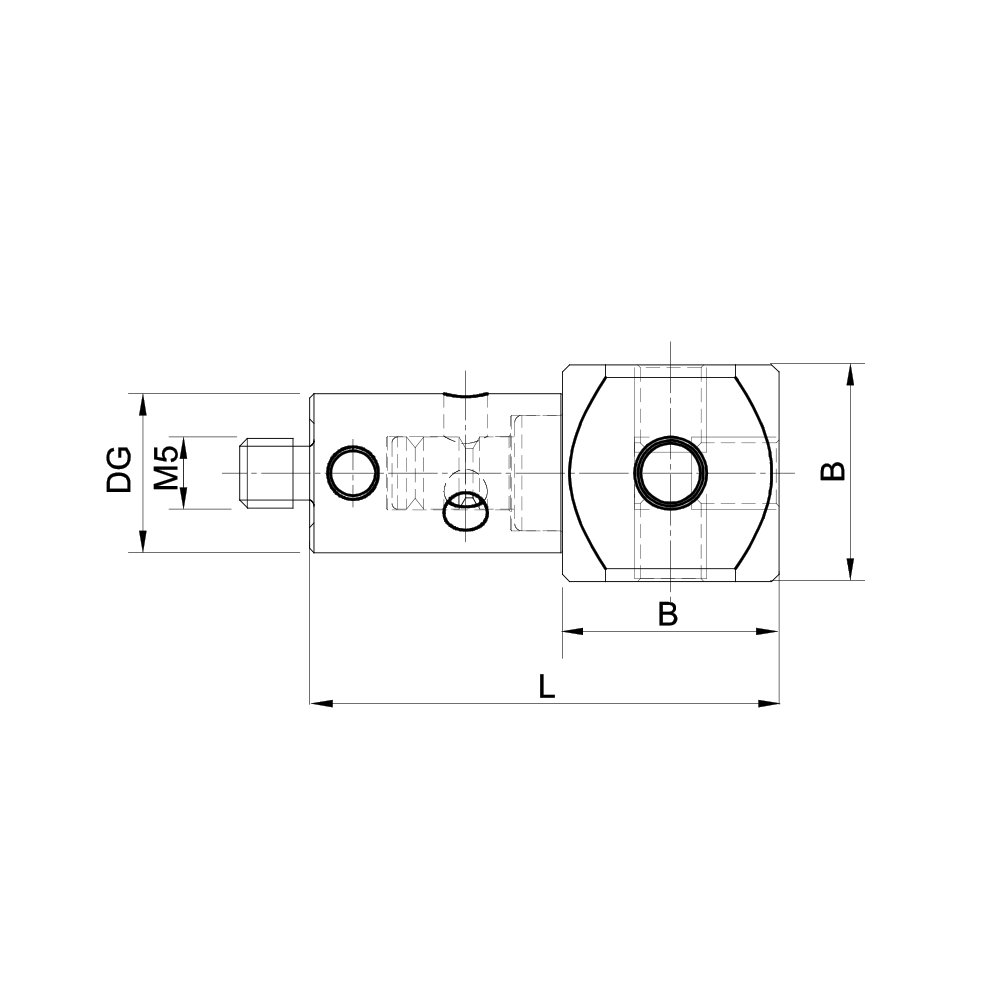

| Thread size: | M5 |
|---|---|
| L: | 32.5 |
| DG: | 11.0 |
| B: | 15.0 |
| Base Material: | titanium |
| Súly: | 18.9 |
| Compatible with: | Zeiss |
| Zeiss No.: | 626105-6280-080 |
