FH M5 020 12 066
Termékszám:
FHM502012066
11
FH M5 020 12 066
Termékszám:
FHM502012066
Straight Styli; base: stainless steel; stem: carbide; ball: ruby
Straight stylus with stepped, hardened body
The tungsten carbide stem with extreme rigidity allows a wide range of dimensions.
High quality ruby balls from Ø1,35mm to Ø2,5mm are used for these styli.
Other sizes can be requested via the configurator or by e-mail.

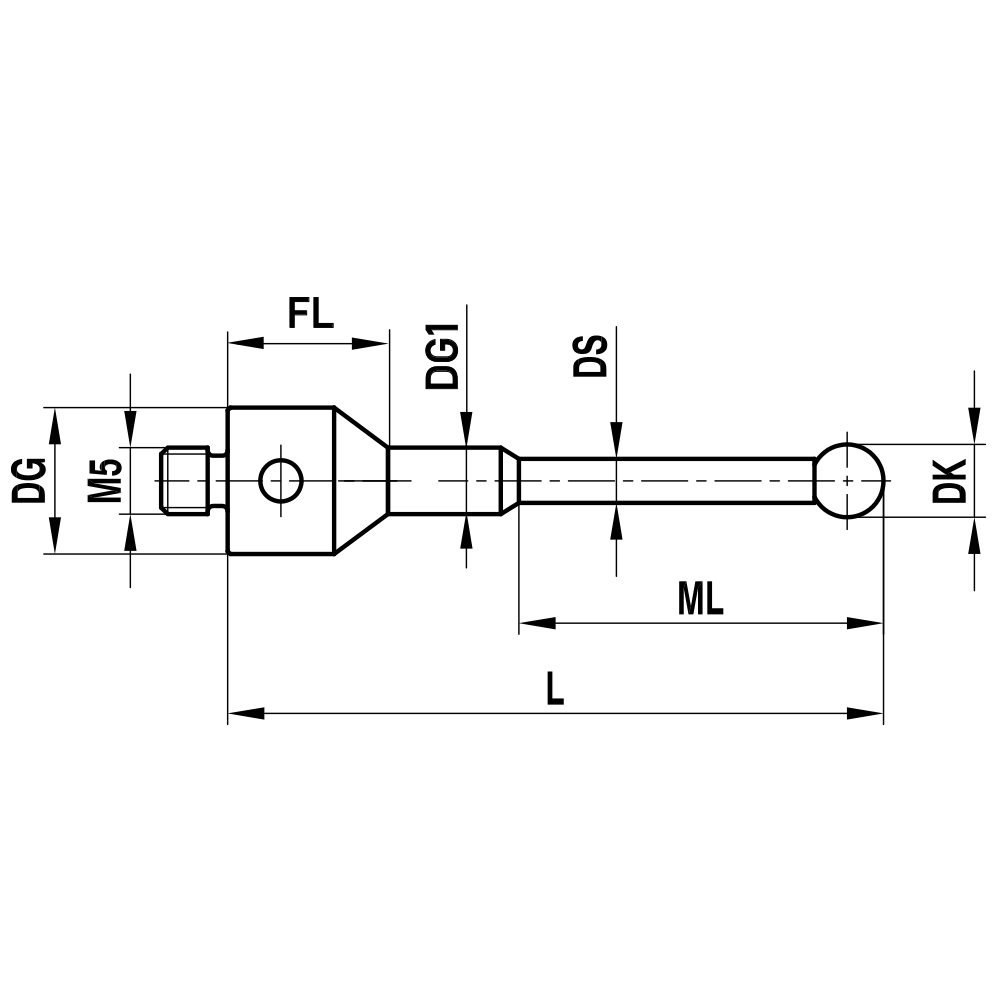

| Thread size: | M5 |
|---|---|
| DK: | 2.0 |
| L: | 67.0 |
| DG: | 12.0 |
| DG (1): | 4.0 |
| FL: | 10.0 |
| ML: | 16.0 |
| DS: | 1.5 |
| Stem Material: | carbide |
| Base Material: | stainless steel |
| Probe ball material: | ruby |
| Súly: | 11.1 |
| Compatible with: | Hexagon |
| Hexagon-No.: | 060-694.150-006 |
