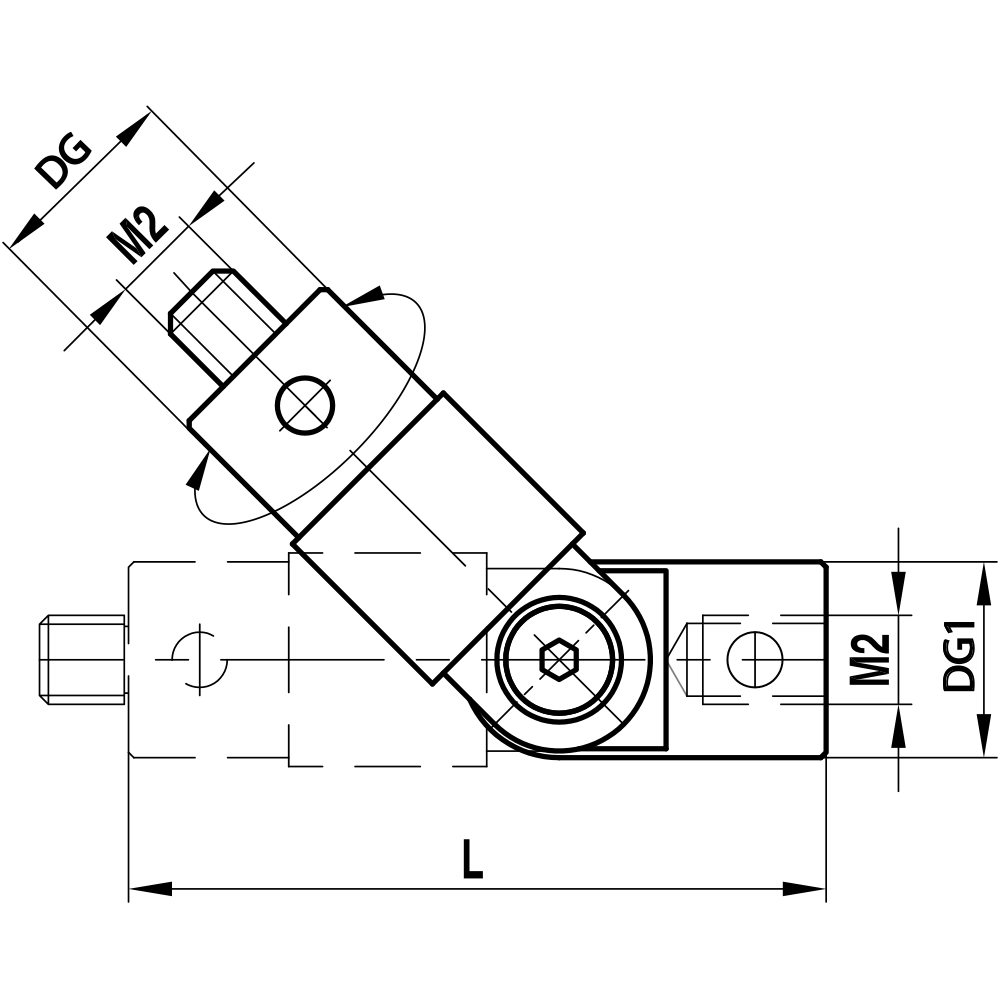

GI M2 000 04 016
Termékszám:
GIM200004016
11
Suitable for Zeiss: 602030-9105-000
Suitable for Zeiss: 602030-9105-000
GI M2 000 04 016
Termékszám:
GIM200004016
Adaptors / Holders ; base: stainless steel
The knuckle can be used to achieve any angular position between 90° and 180°. At the same time, the stylus can be rotated relative to the machine or workpiece coordinate system. This element is very practical in conjunction with rigid measuring systems.
| Thread size: | M2 |
|---|---|
| L: | 16.5 |
| DG: | 3.5 |
| DG (1): | 4.0 |
| Base Material: | stainless steel |
| Súly: | 1.6 |
| Compatible with: | Renishaw, Zeiss |
| Zeiss No.: | 602030-9105-000 |
| Renishaw-No.: | A-5000-9902 |
