GI M3 000 04 017
Termékszám:
GIM300004017
11
Suitable for Zeiss: 000000-1776-958, 626120-0165
Suitable for Zeiss: 000000-1776-958, 626120-0165
GI M3 000 04 017
Termékszám:
GIM300004017
Adaptors / Holders; base: stainless steel

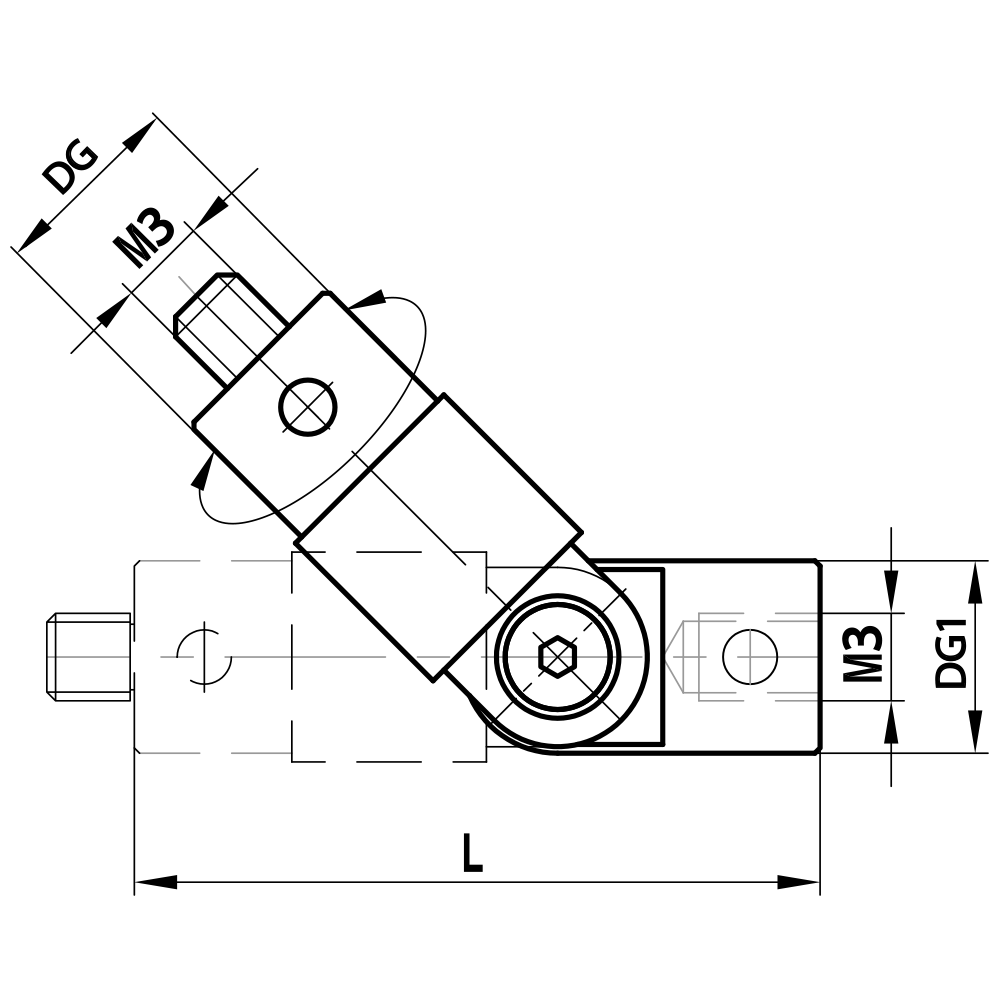

The rotatory adaptor can be used to achieve any angular position between 90° and 180°. At the same time, the stylus can be rotated relative to the machine or workpiece coordinate system. This element is very practical in conjunction with rigid measuring systems.
| Thread size: | M3 |
|---|---|
| L: | 17.0 |
| DG: | 4.0 |
| DG (1): | 4.0 |
| Base Material: | stainless steel |
| Súly: | 0.2 |
| Compatible with: | Renishaw, Zeiss |
| Zeiss No.: | 000000-1776-958, 626120-0165 |
| Renishaw-No.: | A-5003-4686 |
