HI M2 000 07 007
Termékszám:
HIM200007007
11
Suitable for Zeiss: 000000-1776-728
Suitable for Zeiss: 000000-1776-728
HI M2 000 07 007
Termékszám:
HIM200007007
Adaptors / Holders ; base: stainless steel; stem: stainless steel
The styli holders provide quick and flexible mounting of L-shaped styli and star styli with 2 to 4 arms. The holders have 4 mounting threads and can be fixed or swivelled. The rotatable holders can be fixed in any axis orientation.

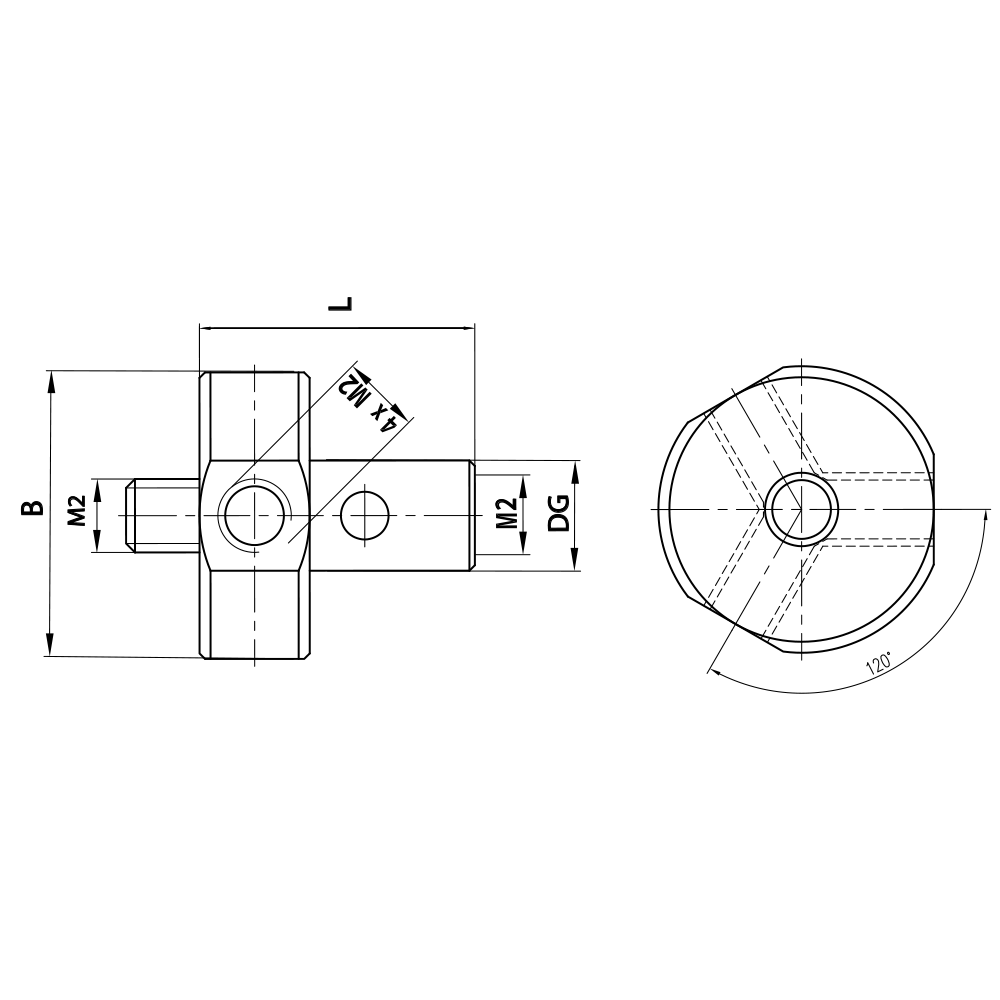

| Thread size: | M2 |
|---|---|
| L: | 7.5 |
| DG: | 3.0 |
| B: | 7.5 |
| W: | 120.0 |
| Stem Material: | stainless steel |
| Base Material: | stainless steel |
| Súly: | 1 |
| Compatible with: | Renishaw, Zeiss |
| Zeiss No.: | 000000-1776-728 |
| Renishaw-No.: | A-5000-8395 |
