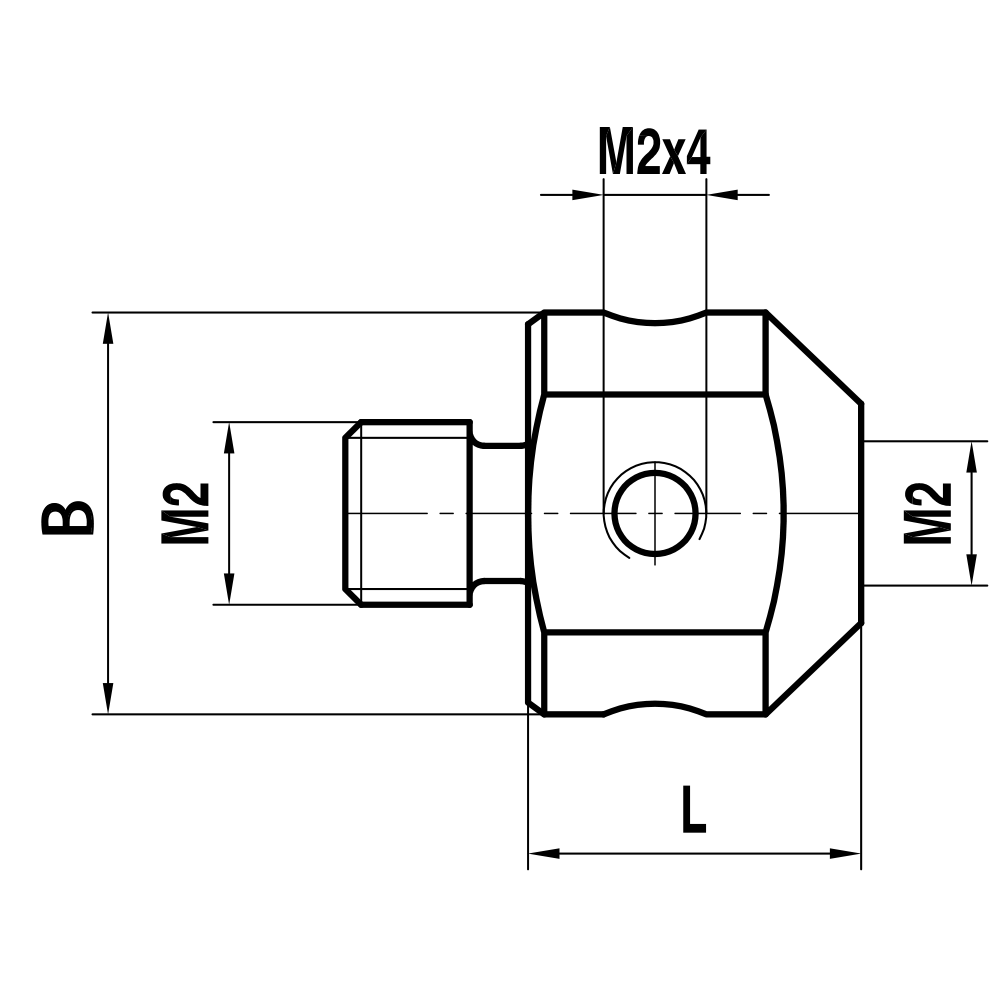

HI M2 000 10 009
Termékszám:
HIM200010009
11
Suitable for Zeiss: 602030-9104-000
Suitable for Zeiss: 602030-9104-000
HI M2 000 10 009
Termékszám:
HIM200010009
Adaptors / Holders ; base: stainless steel; stem: stainless steel
The styli holders provide quick and flexible mounting of L-shaped styli and star styli with 2 to 5 arms. The holders have 5 mounting threads and can be fixed or swivelled. The rotatable holders can be fixed in any axis orientation.
| Thread size: | M2 |
|---|---|
| L: | 9.5 |
| B: | 10.0 |
| Stem Material: | stainless steel |
| Base Material: | stainless steel |
| Súly: | 3.9 |
| Compatible with: | Renishaw, Zeiss |
| Zeiss No.: | 602030-9104-000 |
| Renishaw-No.: | A-5555-0319 |
