HI M3 000 10 013
Termékszám:
HIM300010013
11
Suitable for Zeiss: 000000-1776-491, 626120-0011-000
Suitable for Zeiss: 000000-1776-491, 626120-0011-000

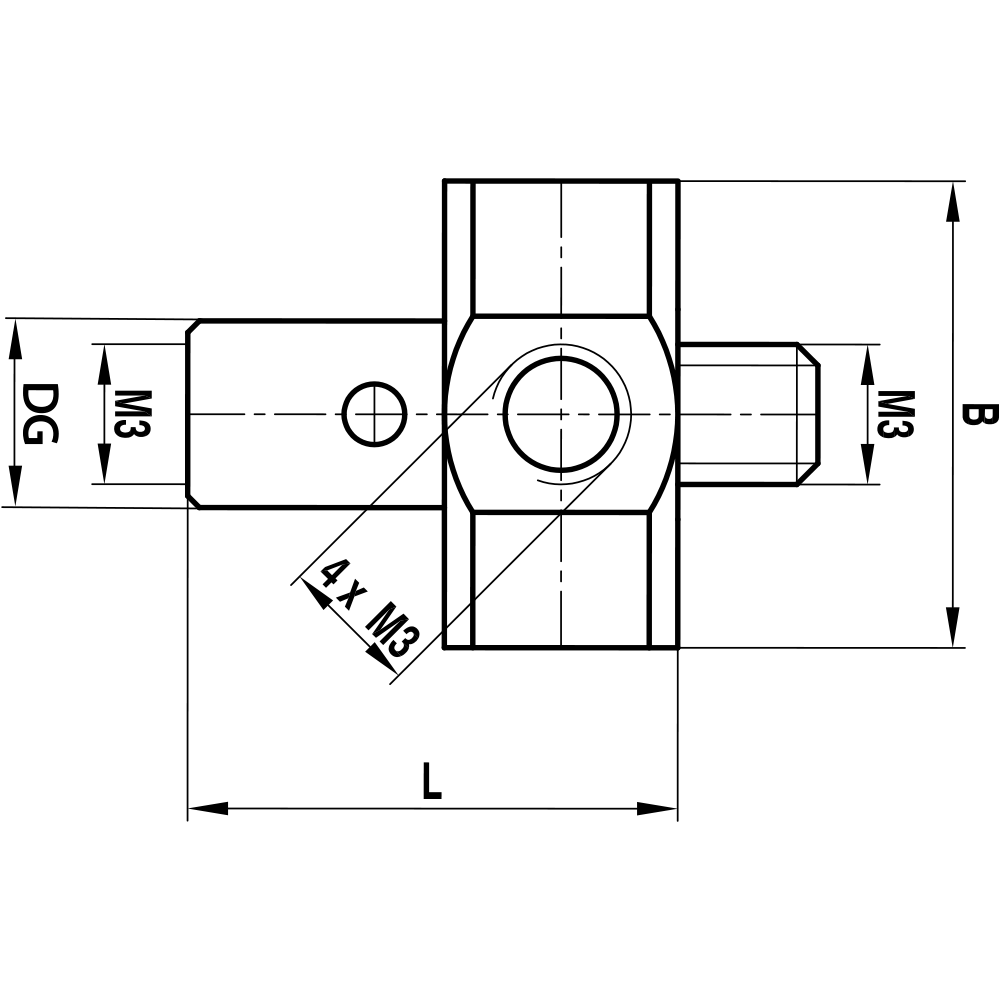

HI M3 000 10 013
Termékszám:
HIM300010013
Adaptors / Holders; base: stainless steel
The styli holders provide quick and flexible mounting of L-shaped styli and star styli with 2 to 5 arms. The holders have 5 mounting threads and can be fixed or swivelled. The rotatable holders can be fixed in any axis orientation.
| Thread size: | M3 |
|---|---|
| L: | 13.0 |
| DG: | 4.0 |
| B: | 10.0 |
| Base Material: | stainless steel |
| Súly: | 3.3 |
| Compatible with: | Hexagon, Renishaw, Zeiss |
| Zeiss No.: | 000000-1776-491, 626120-0011-000 |
| Renishaw-No.: | A-5000-7610 |
| Hexagon-No.: | 03969046 |
