HI M3 000 12 011
Termékszám:
HIM300012011
11
Suitable for Zeiss: 602030-8382-000
Suitable for Zeiss: 602030-8382-000
HI M3 000 12 011
Termékszám:
HIM300012011
Adaptors / Holders; base: stainless steel
The styli holders provide quick and flexible mounting of L-shaped styli and star styli with 2 to 5 arms. The holders have 5 mounting threads and can be fixed or swivelled. The rotatable holders can be fixed in any axis orientation.

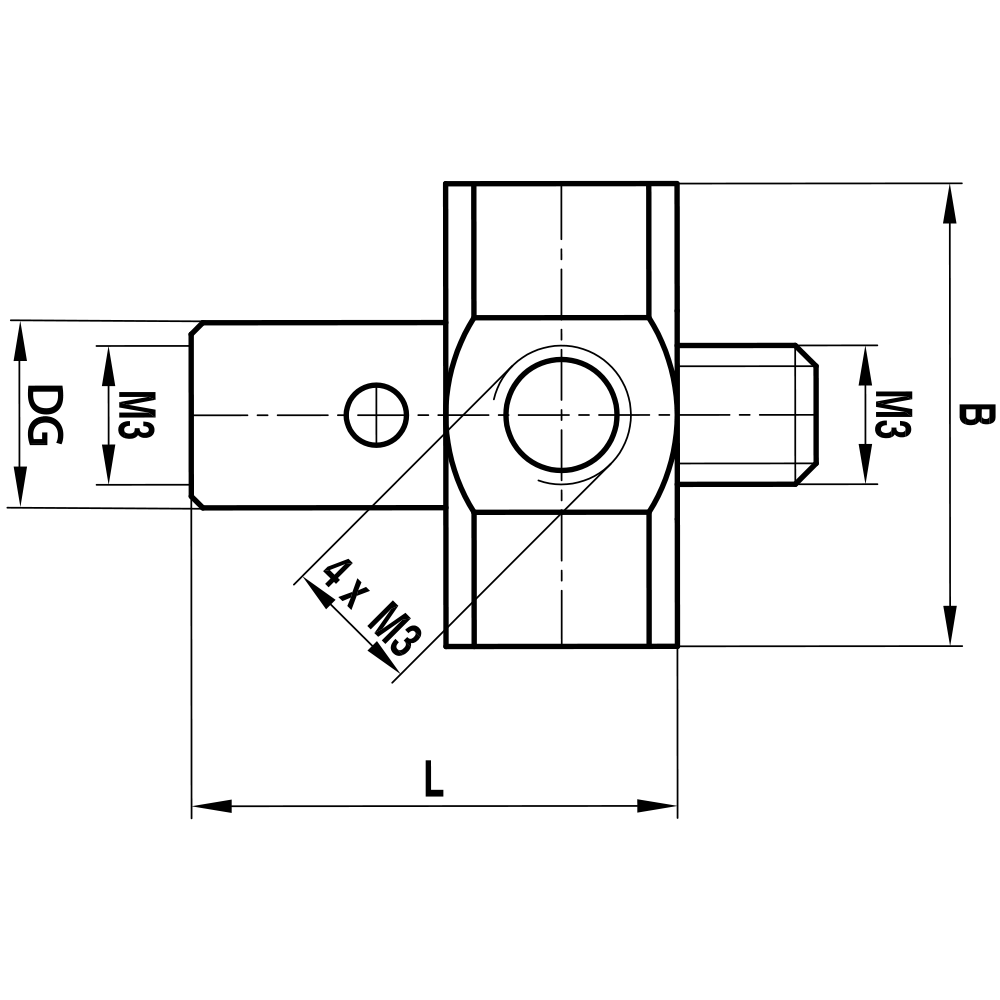

| Thread size: | M3 |
|---|---|
| L: | 11.5 |
| DG: | 4.0 |
| B: | 12.0 |
| Base Material: | stainless steel |
| Súly: | 4.4 |
| Compatible with: | Renishaw, Zeiss |
| Zeiss No.: | 602030-8382-000 |
| Renishaw-No.: | A-5555-0303 |
