HK M3 300 04 018
Termékszám:
HKM330004018
11
HK M3 300 04 018
Termékszám:
HKM330004018

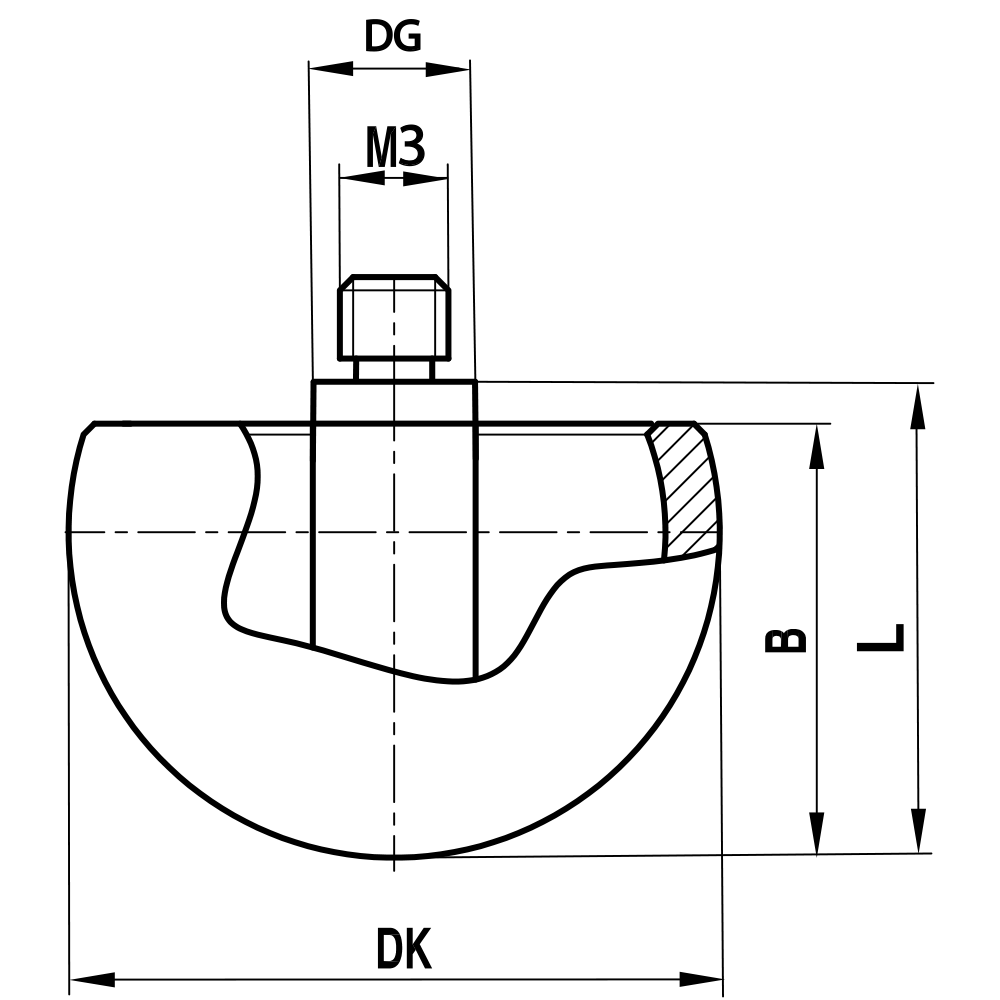

Hemispherical Styli; base: stainless steel; ball: ceramic
Due to their size, probes with ceramic hollow spheres are often used as mechanical filters when probing coarse and rough surface structures. The hollow sphere is lightweight and, despite the mechanical processing, has a very high level of precision.
| Thread size: | M3 |
|---|---|
| DK: | 30.0 |
| L: | 18.0 |
| DG: | 4.0 |
| B: | 17.0 |
| Base Material: | stainless steel |
| Probe ball material: | ceramic |
| Súly: | 14.5 |
| Compatible with: | Hexagon, Renishaw |
| Renishaw-No.: | A-5000-7814 |
| Hexagon-No.: | 0369330 |
