HK M5 160 10 019
Termékszám:
HKM516010019
11
Suitable for Zeiss: 626105-1696-020, 626120-0089-000
Suitable for Zeiss: 626105-1696-020, 626120-0089-000
HK M5 160 10 019
Termékszám:
HKM516010019

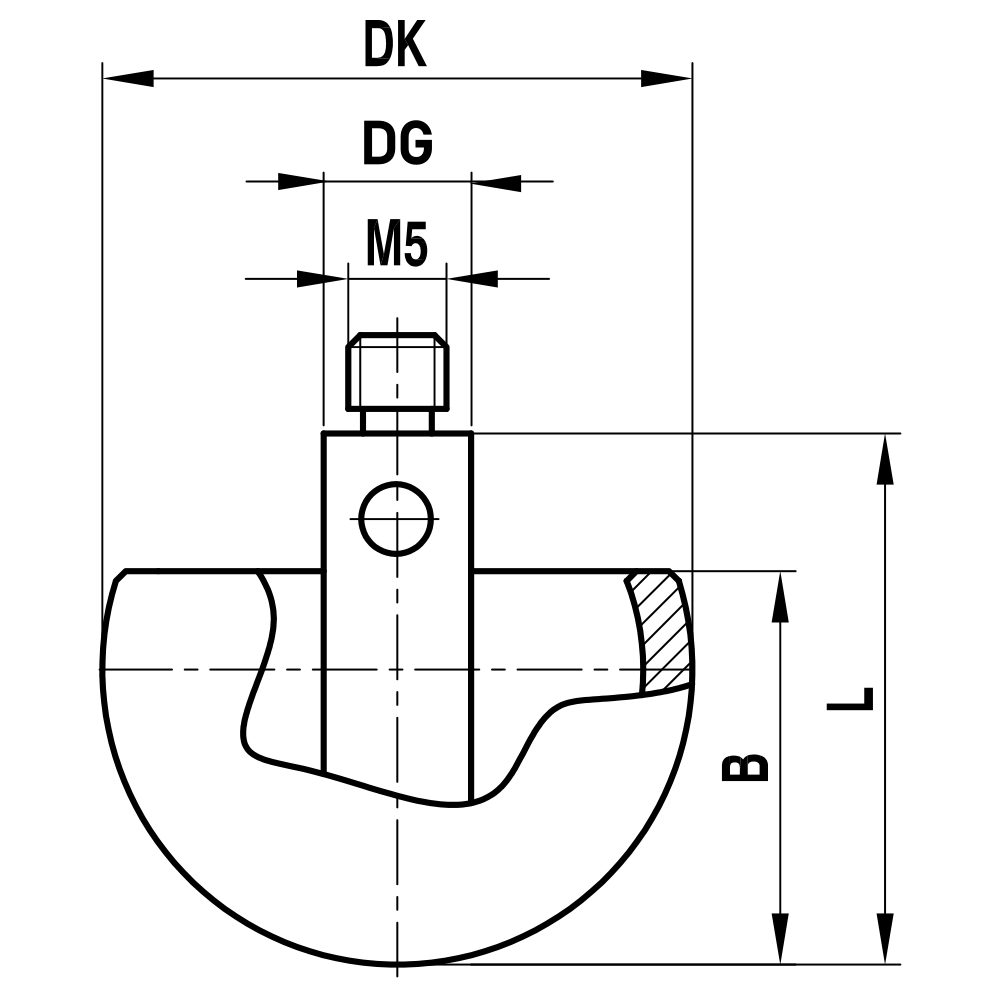

Hemispherical Styli; base: stainless steel; ball: ceramic
Due to their size, Hemispherical styli are often used as mechanical filters when probing coarse and rough surface structures. The hollow sphere is lightweight and, despite the mechanical processing, has a very high level of precision.
| Thread size: | M5 |
|---|---|
| DK: | 16.0 |
| L: | 19.5 |
| DG: | 10.0 |
| B: | 10.0 |
| Base Material: | stainless steel |
| Probe ball material: | ceramic |
| Súly: | 9.6 |
| Compatible with: | Renishaw, Zeiss |
| Zeiss No.: | 626105-1696-020, 626120-0089-000 |
| Renishaw-No.: | A-5003-5275 |
