HK M5 220 10 020
Termékszám:
HKM522010020
11
Suitable for Zeiss: 626105-2296-020, 000000-0485-687
Suitable for Zeiss: 626105-2296-020, 000000-0485-687
HK M5 220 10 020
Termékszám:
HKM522010020

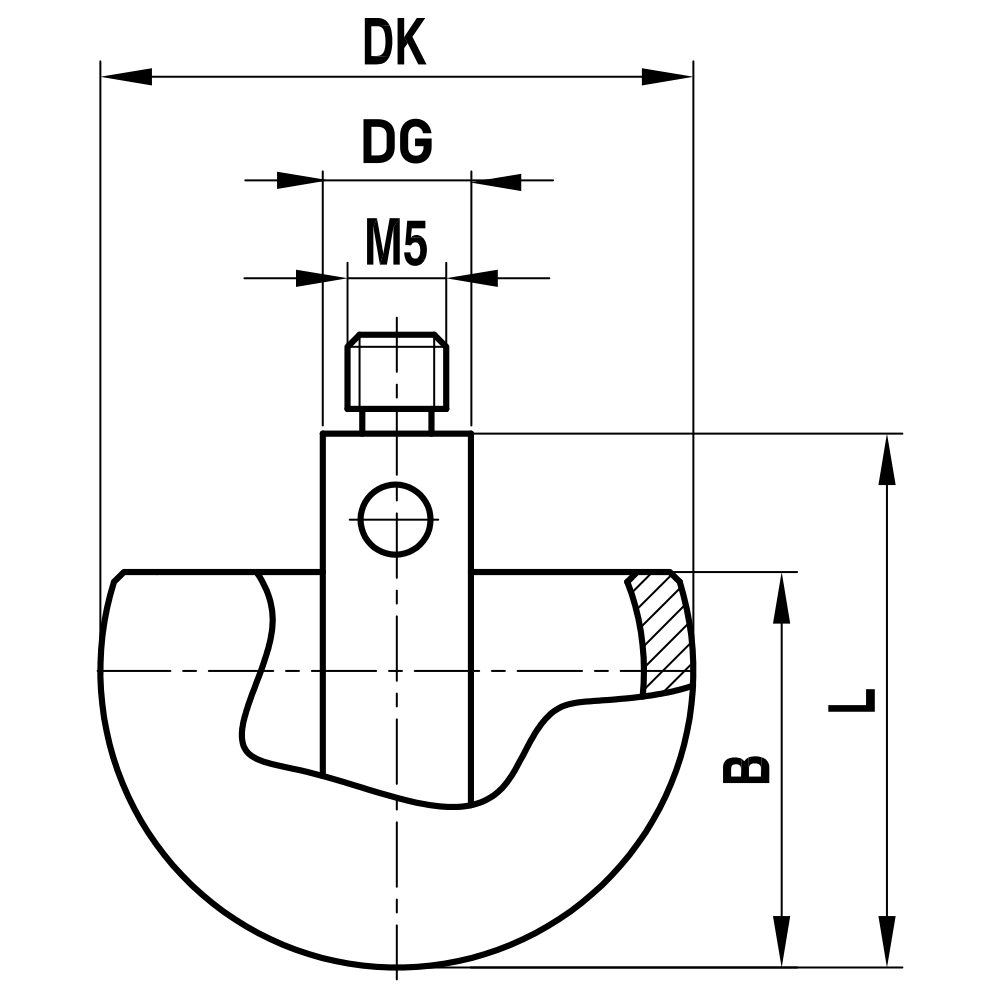

Hemispherical Styli; base: stainless steel; ball: ceramic
Due to their size, Hemispherical styli are often used as mechanical filters when probing coarse and rough surface structures. The hollow sphere is lightweight and, despite the mechanical processing, has a very high level of precision.
| Thread size: | M5 |
|---|---|
| DK: | 22.0 |
| L: | 20.5 |
| DG: | 10.0 |
| B: | 13.0 |
| Base Material: | stainless steel |
| Probe ball material: | ceramic |
| Súly: | 14.4 |
| Compatible with: | Renishaw, Zeiss |
| Zeiss No.: | 626105-2296-020, 000000-0485-687 |
| Renishaw-No.: | A-5003-5276 |
