HK M5 300 10 024
Termékszám:
HKM530010024
11
Suitable for Zeiss: 626120-0082-000, 626105-3096-025
Suitable for Zeiss: 626120-0082-000, 626105-3096-025
HK M5 300 10 024
Termékszám:
HKM530010024

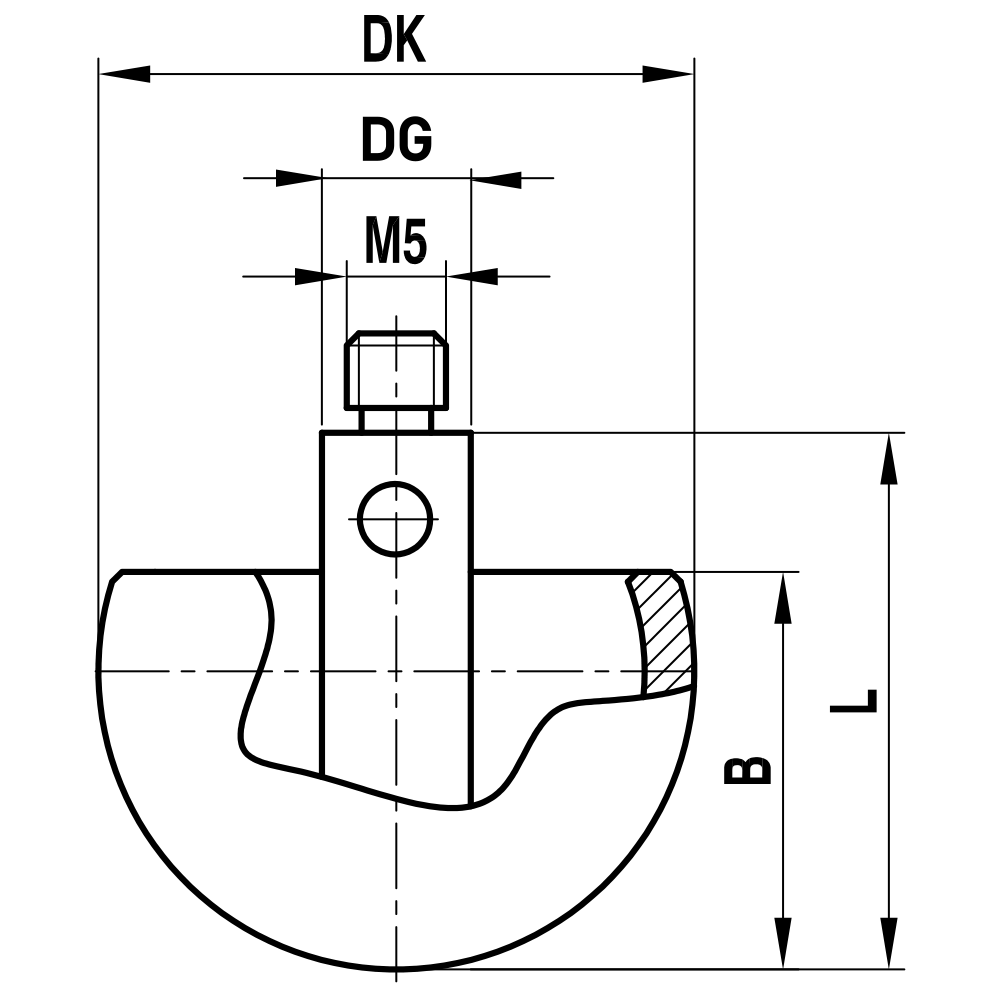

Hemispherical Styli; base: stainless steel; ball: ceramic
Due to their size, Hemispherical styli are often used as mechanical filters when probing coarse and rough surface structures. The hollow sphere is lightweight and, despite the mechanical processing, has a very high level of precision.
| Thread size: | M5 |
|---|---|
| DK: | 30.0 |
| L: | 24.5 |
| DG: | 10.0 |
| B: | 17.0 |
| Base Material: | stainless steel |
| Probe ball material: | ceramic |
| Súly: | 20.7 |
| Compatible with: | Renishaw, Zeiss |
| Zeiss No.: | 626120-0082-000, 626105-3096-025 |
| Renishaw-No.: | A-5003-5277 |
