IH M2 060 03 010
Termékszám:
IHM206003010
11
Suitable for Zeiss: 602030-8343-000
Suitable for Zeiss: 602030-8343-000
IH M2 060 03 010
Termékszám:
IHM206003010

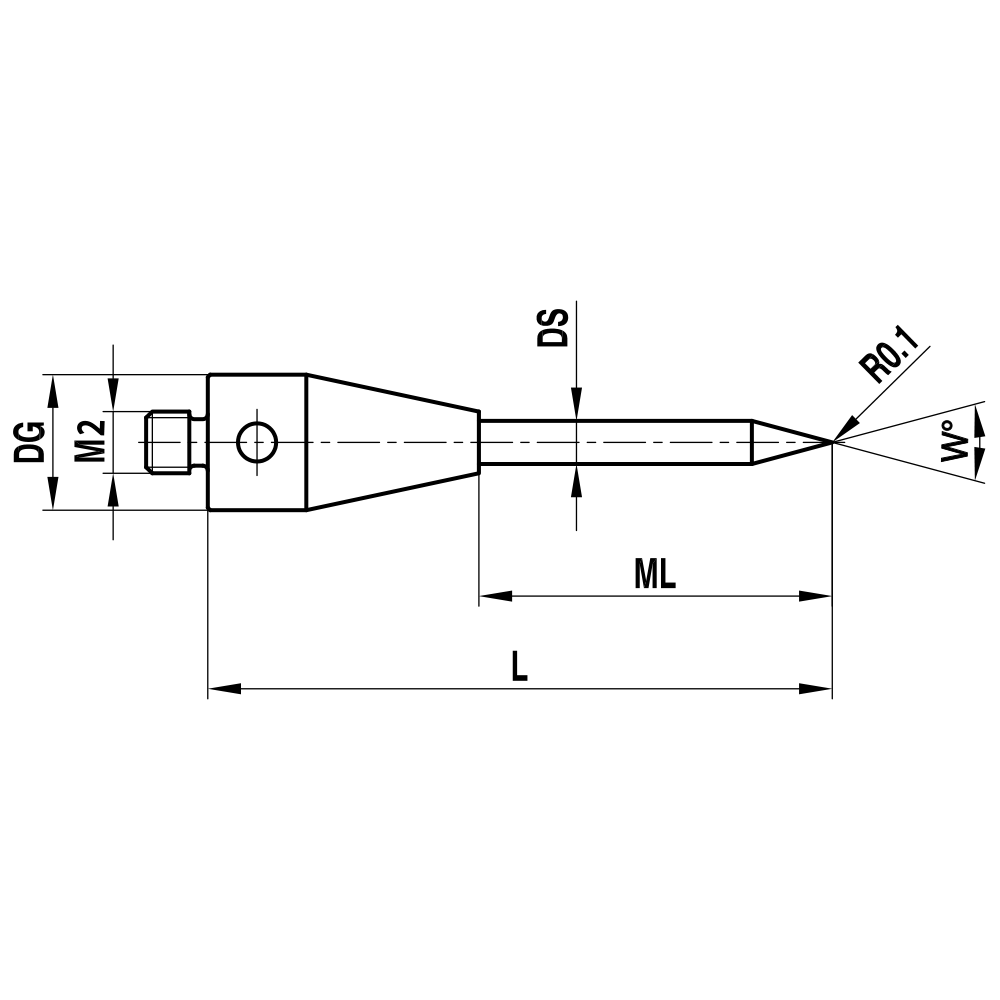

Straight Styli; base: stainless steel; stem: carbide
Straight stylus with a special shape that replaces the ball with a stainless steel or tungsten carbide tip. The tips can have an angle of 30° and 60°. The main application is for very small probing surfaces or for self-centering probing of bores.
| Thread size: | M2 |
|---|---|
| L: | 10.0 |
| DG: | 3.0 |
| ML: | 6.0 |
| DS: | 1.5 |
| W: | 60.0 |
| Stem Material: | carbide |
| Base Material: | stainless steel |
| Súly: | 1 |
| Compatible with: | Zeiss |
| Zeiss No.: | 602030-8343-000 |
