IH M5 030 11 061
Termékszám:
IHM503011061
11
Suitable for Zeiss: 600342-8051-000
Suitable for Zeiss: 600342-8051-000
IH M5 030 11 061
Termékszám:
IHM503011061

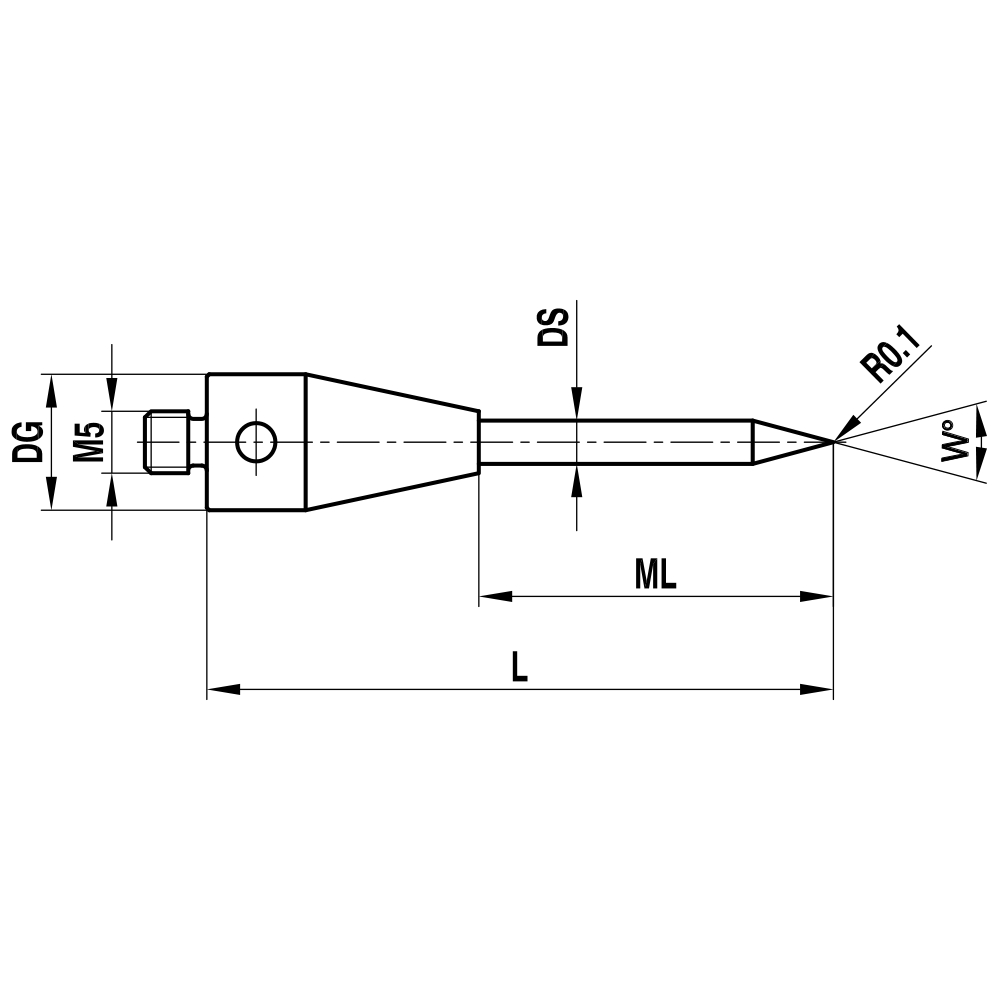

Straight Styli; base: titanium; stem: carbide; ball: carbide
Straight stylus with a special shape where the ball is replaced by a stainless steel or tungsten carbide tip. The tips can have an angle of 30° and 60°. The main application is for very small probing surfaces or for self-centering probing of bores.
| Thread size: | M5 |
|---|---|
| L: | 61.0 |
| DG: | 11.0 |
| ML: | 39.0 |
| DS: | 3.5 |
| W: | 30.0 |
| Stem Material: | carbide |
| Base Material: | titanium |
| Súly: | 12.5 |
| Compatible with: | Renishaw, Zeiss |
| Zeiss No.: | 600342-8051-000 |
| Renishaw-No.: | A-5555-0216 |
