IH M6 030 16 047
Termékszám:
IHM603016047
11
IH M6 030 16 047
Termékszám:
IHM603016047

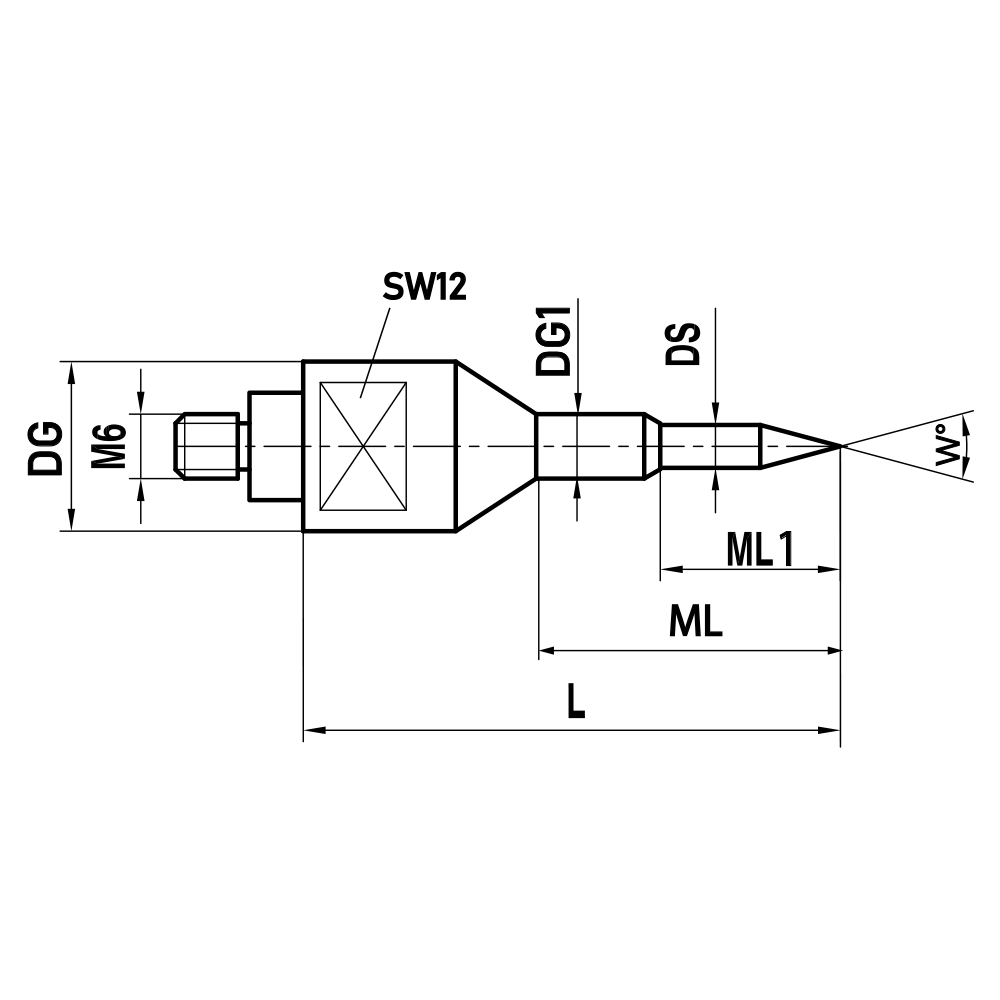

Straight Styli; base: stainless steel; stem: carbide; ball: carbide
Straight stylus with a special shape where the ball is replaced by a stainless steel or tungsten carbide tip. The tips can have an angle of 30° and 60°. The main application is for very small probing surfaces or for self-centering probing of bores.
| Thread size: | M6 |
|---|---|
| L: | 47.0 |
| DG: | 16.0 |
| DG (1): | 6.0 |
| ML: | 22.5 |
| ML (1): | 9.0 |
| DS: | 2.0 |
| A: | 30° |
| W: | 30.0 |
| Stem Material: | carbide |
| Base Material: | stainless steel |
| Súly: | 37.5 |
| Compatible with: | Faro |
