II M2 030 03 015
Termékszám:
IIM203003015
11
II M2 030 03 015
Termékszám:
IIM203003015

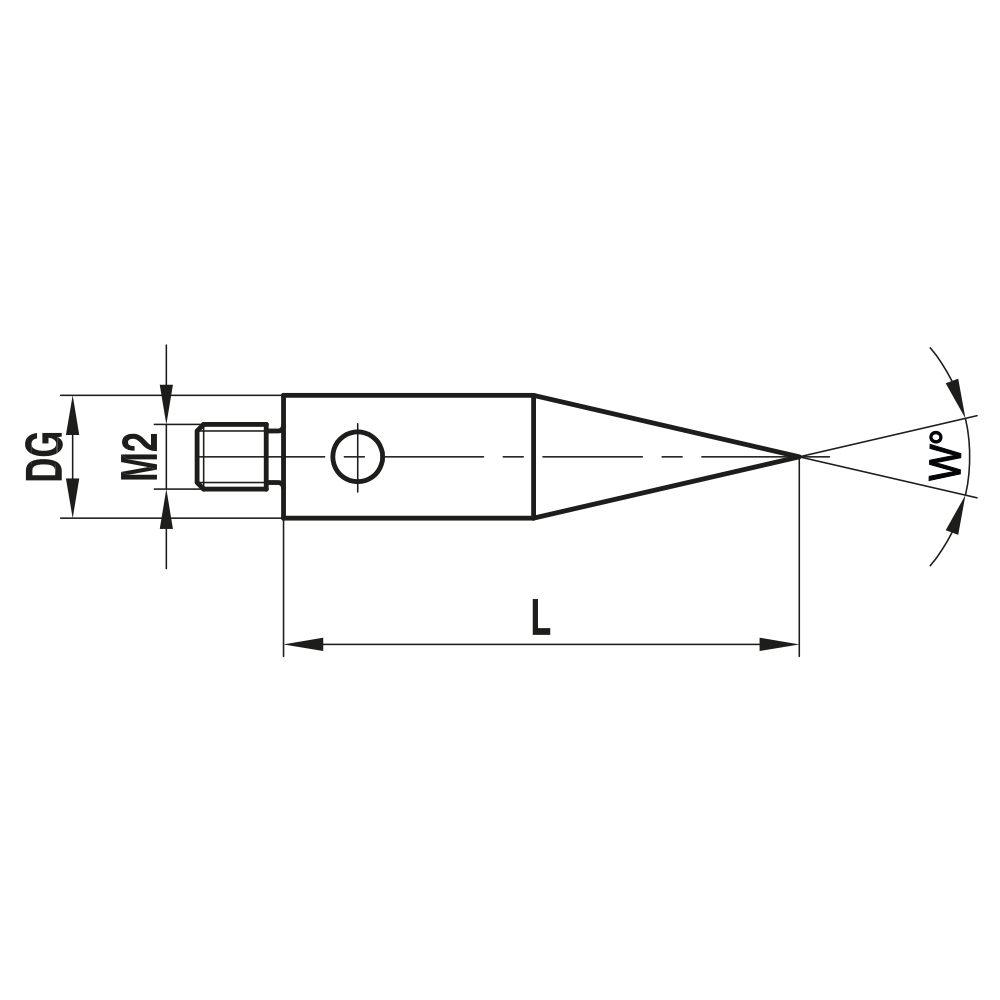

Straight Styli; base: stainless steel; stem: stainless steel
Straight stylus with a special shape that replaces the ball with a stainless steel or tungsten carbide tip. The tips can have an angle of 30° and 60°. The main application is for very small probing surfaces or for self-centering probing of bores.
| Thread size: | M2 |
|---|---|
| L: | 15.0 |
| DG: | 3.0 |
| DS: | 3.0 |
| W: | 30.0 |
| Stem Material: | stainless steel |
| Base Material: | stainless steel |
| Súly: | 0.6 |
