KH M5 000 11 015
Termékszám:
KHM500011015
11
Suitable for Zeiss: 600341-8368-000
Suitable for Zeiss: 600341-8368-000
KH M5 000 11 015
Termékszám:
KHM500011015
Adaptors / Holders; base: stainless steel
Clamping holders are used in combination with non-threaded probes (type S/T). They allow probes with different ball diameters to be changed quickly and flexibly directly on the measuring machine.
Up to 4 probes can be mounted in a star configuration and one probe in the Z direction at the same time.

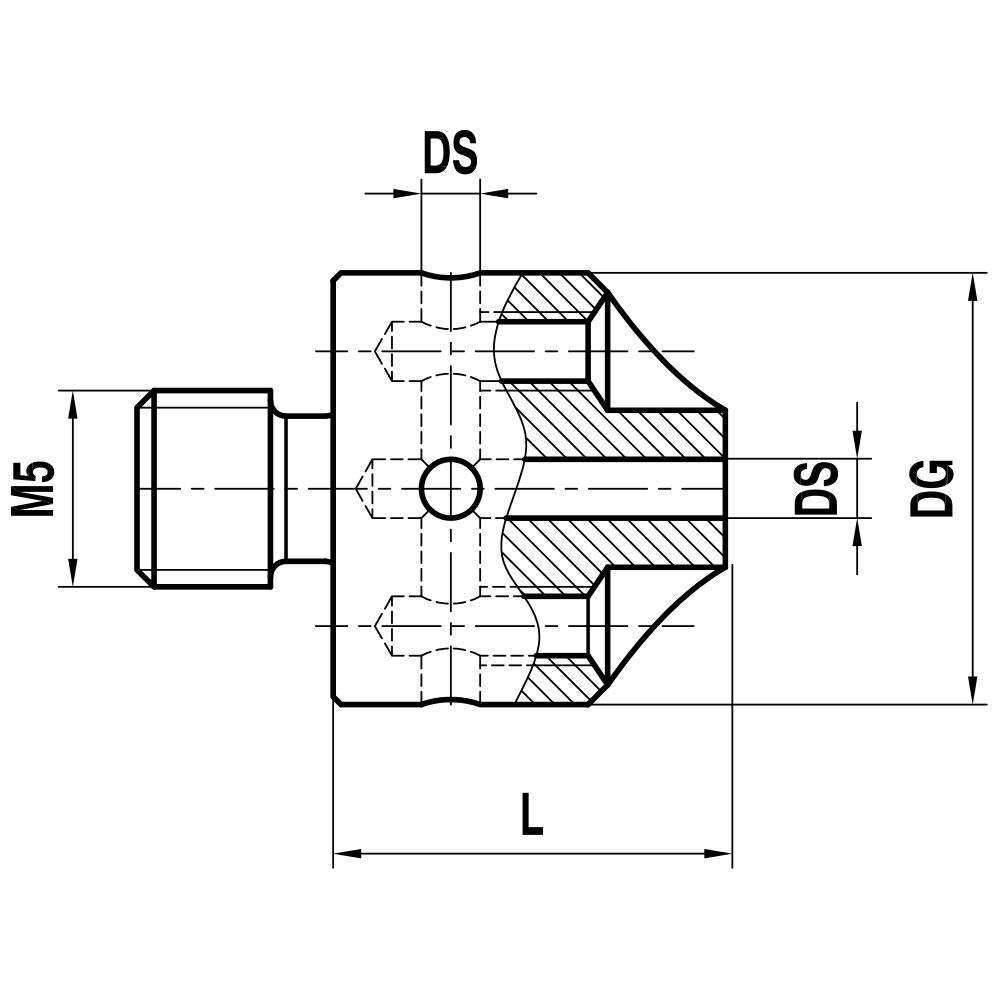

| Thread size: | M5 |
|---|---|
| L: | 10.0 |
| DG: | 11.0 |
| DS: | 1.5 |
| Base Material: | stainless steel |
| Súly: | 5.5 |
| Compatible with: | Renishaw, Zeiss |
| Zeiss No.: | 600341-8368-000 |
| Renishaw-No.: | A-5555-0106 |
