KH M5 100 12 046
Termékszám:
KHM510012046
11
KH M5 100 12 046
Termékszám:
KHM510012046

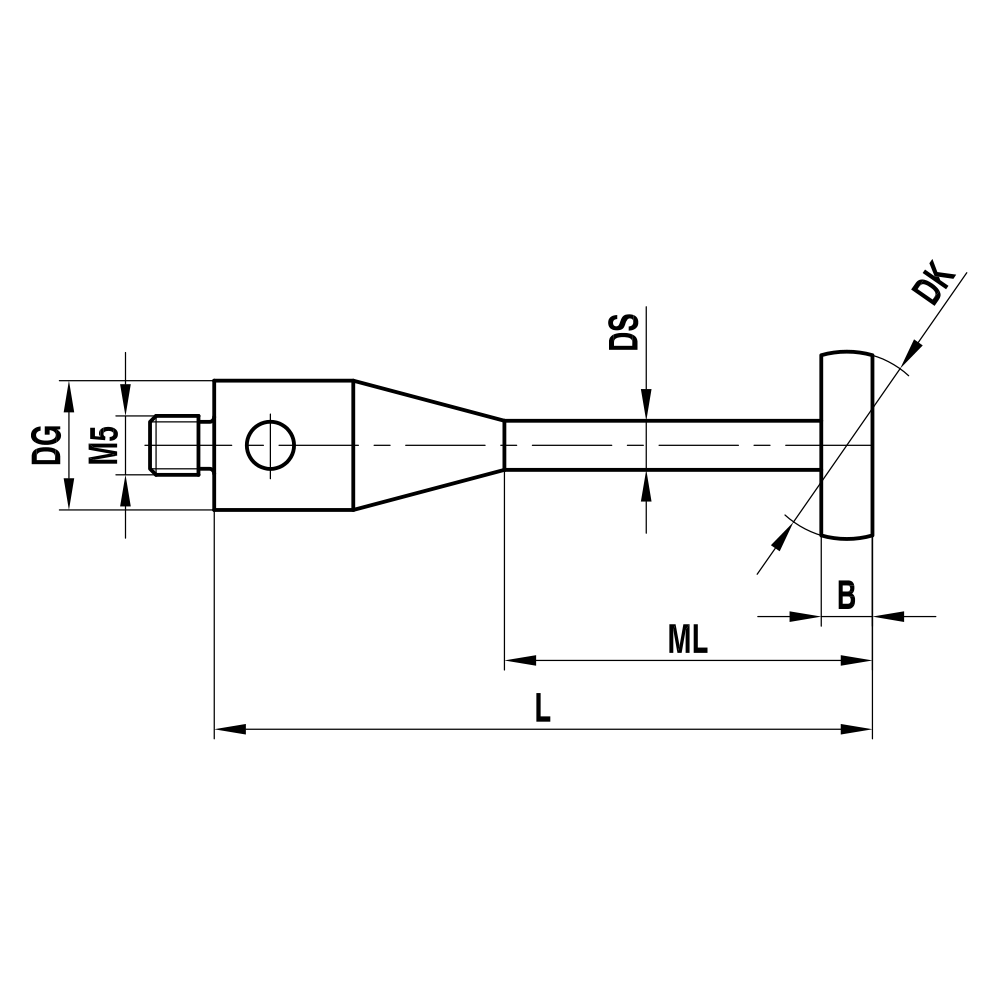

Disc Styli; base: stainless steel; stem: carbide; ball: stainless steel
These styli are available with tungsten carbide or stainless steel stem and stainless steel disc. They are often used to measure softer materials such as aluminium, plastics or non-alloy steels.
| Thread size: | M5 |
|---|---|
| DK: | 10.0 |
| L: | 46.7 |
| DG: | 12.0 |
| ML: | 35.7 |
| DS: | 3.0 |
| B: | 0.7 |
| Stem Material: | carbide |
| Base Material: | stainless steel |
| Probe ball material: | stainless steel |
| Súly: | 11.4 |
