KI M2 015 18 M20
Termékszám:
KIM201518M20
11
Suitable for Zeiss: 000000-1776-470
Suitable for Zeiss: 000000-1776-470
KI M2 015 18 M20
Termékszám:
KIM201518M20

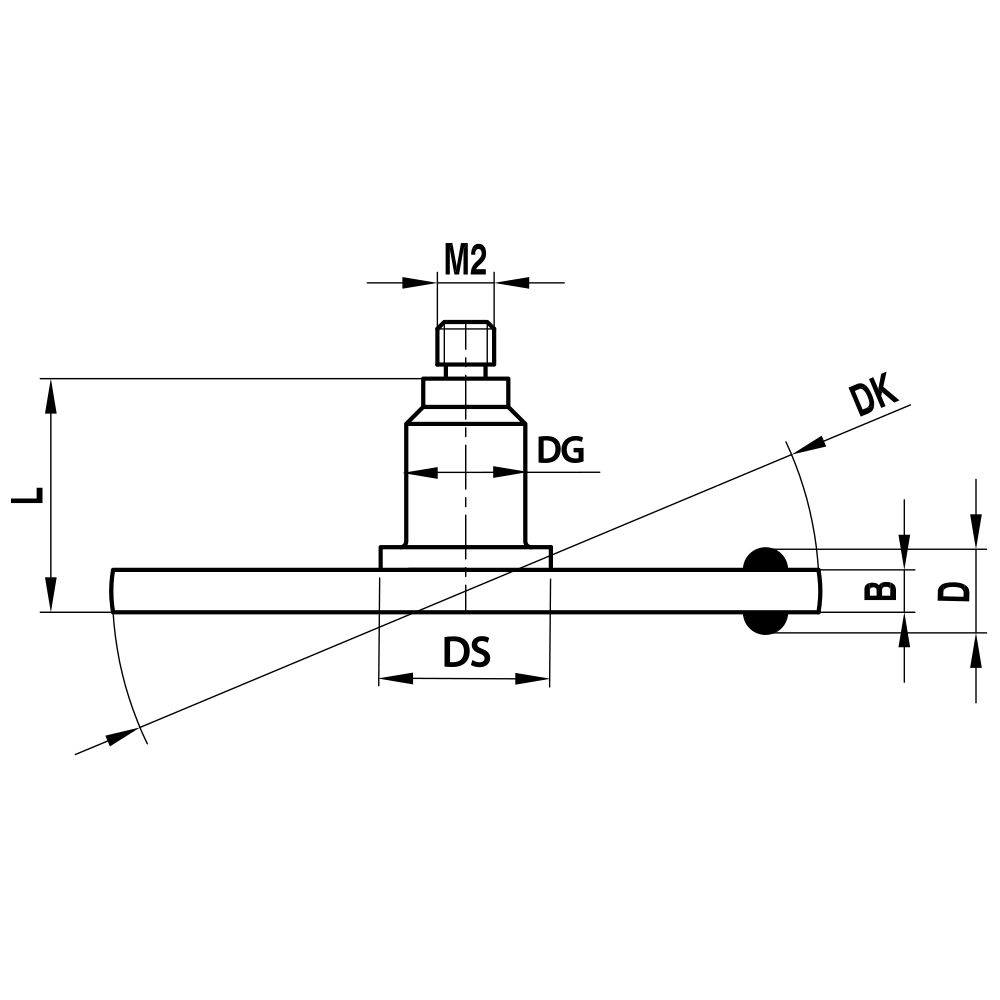

Disc Styli; base: stainless steel; stem: stainless steel; ball: stainless steel/ruby
This type of stylus has a monolithic base and a stainless steel disc. In addition, ruby balls are mounted on the face to enable measurement of groove width, for example. These styli are often used to measure workpieces made of low hardness materials such as aluminium, plastics or non-alloy steels.
| Thread size: | M2 |
|---|---|
| DK: | 18.0 |
| L: | 8.25 |
| DG: | 4.2 |
| DS: | 6.0 |
| B: | 1.5 |
| D: | 2.5 |
| Stem Material: | stainless steel |
| Base Material: | stainless steel |
| Probe ball material: | stainless steel / ruby |
| Súly: | 3.8 |
| Compatible with: | Hexagon, Mitutoyo, Renishaw, Zeiss |
| Zeiss No.: | 000000-1776-470 |
| Renishaw-No.: | A-5000-7809 |
| Hexagon-No.: | 03969242 |
| itp_product_attributes_mitutoyo_no: | K651083 |
