KI M2 200 25 005
Termékszám:
KIM220025005
11
Suitable for Zeiss: 602030-8204-000
Suitable for Zeiss: 602030-8204-000
KI M2 200 25 005
Termékszám:
KIM220025005

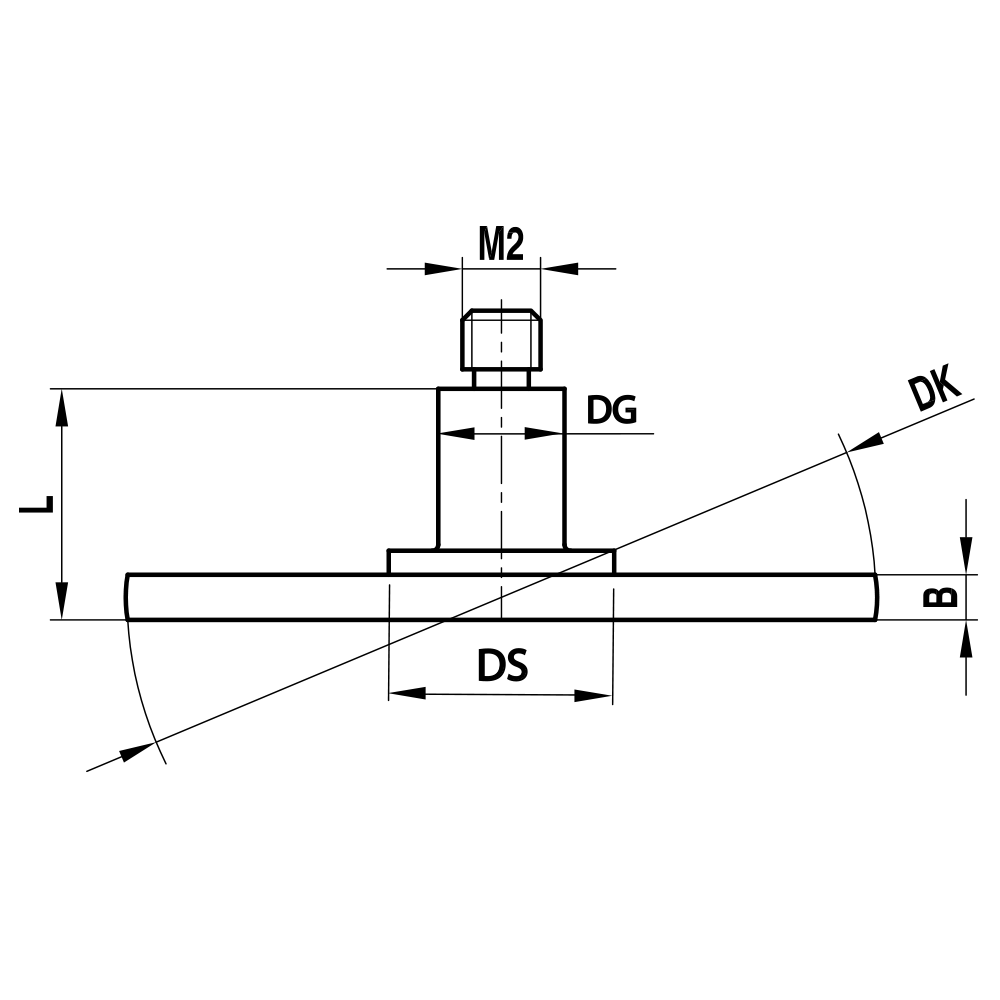

Disc Styli; base: stainless steel; stem: stainless steel; ball: ceramic
These models are styli with a monolithic stainless steel base and a ceramic disc. Ceramic has properties similar to ruby and is therefore suitable for measuring a wide range of materials.
| Thread size: | M2 |
|---|---|
| DK: | 20.0 |
| L: | 5.0 |
| DG: | 3.0 |
| DS: | 6.5 |
| B: | 2.5 |
| Stem Material: | stainless steel |
| Base Material: | stainless steel |
| Probe ball material: | ceramic |
| Súly: | 3.7 |
| Compatible with: | Hexagon, Renishaw, Zeiss |
| Zeiss No.: | 602030-8204-000 |
| Renishaw-No.: | A-5555-0300 |
| Hexagon-No.: | 03969243 |
