KI M3 060 63 M30
Termékszám:
KIM306063M30
11
KI M3 060 63 M30
Termékszám:
KIM306063M30

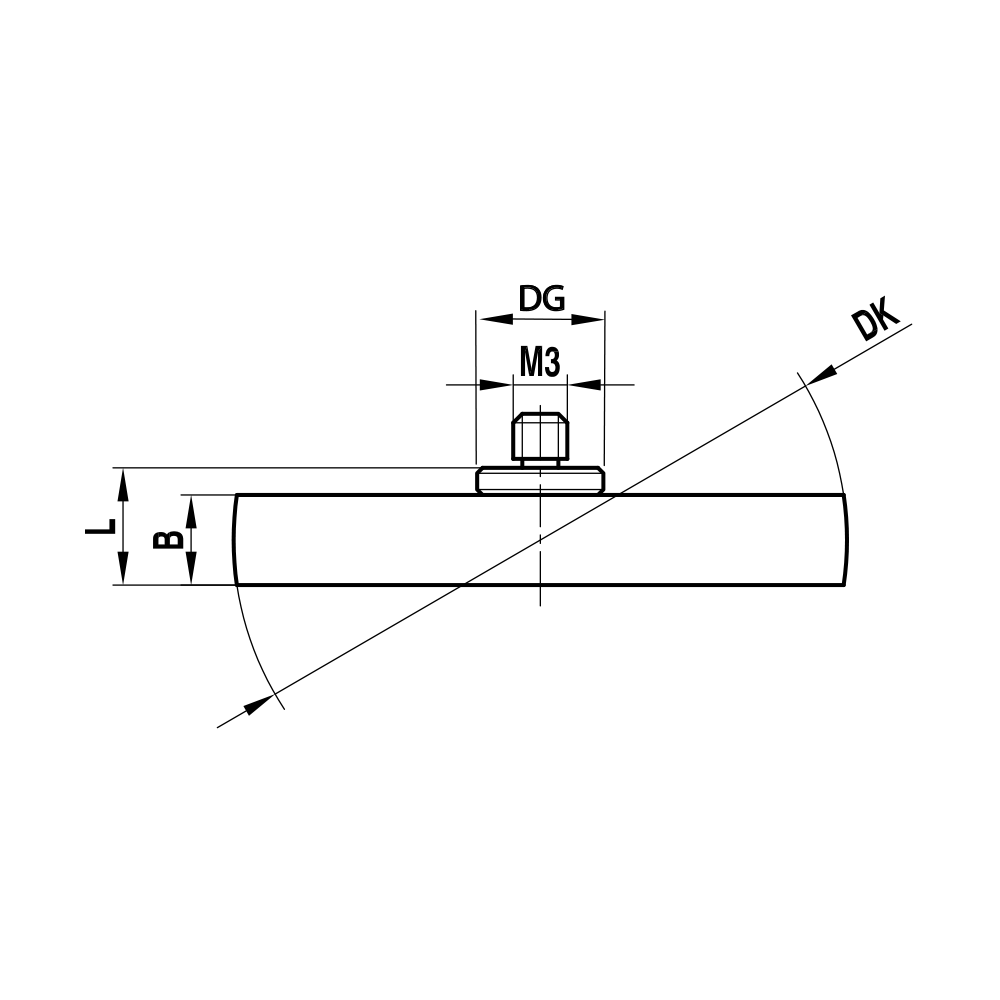

Disc Styli; base: stainless steel; stem: stainless steel; ball: stainless steel
Styli with monolithic base and stainless steel disc. These styli are often used to measure workpieces made of low hardness materials such as aluminium, plastics or unalloyed steels.
| Thread size: | M3 |
|---|---|
| DK: | 63.5 |
| L: | 7.5 |
| DG: | 7.0 |
| B: | 6.0 |
| Stem Material: | stainless steel |
| Base Material: | stainless steel |
| Probe ball material: | stainless steel |
| Súly: | 45.4 |
| Compatible with: | Renishaw |
| Renishaw-No.: | A-5000-7669 |
