KI M5 022 11 040
Termékszám:
KIM502211040
11
Suitable for Zeiss: 600341-8180-000
Suitable for Zeiss: 600341-8180-000
KI M5 022 11 040
Termékszám:
KIM502211040

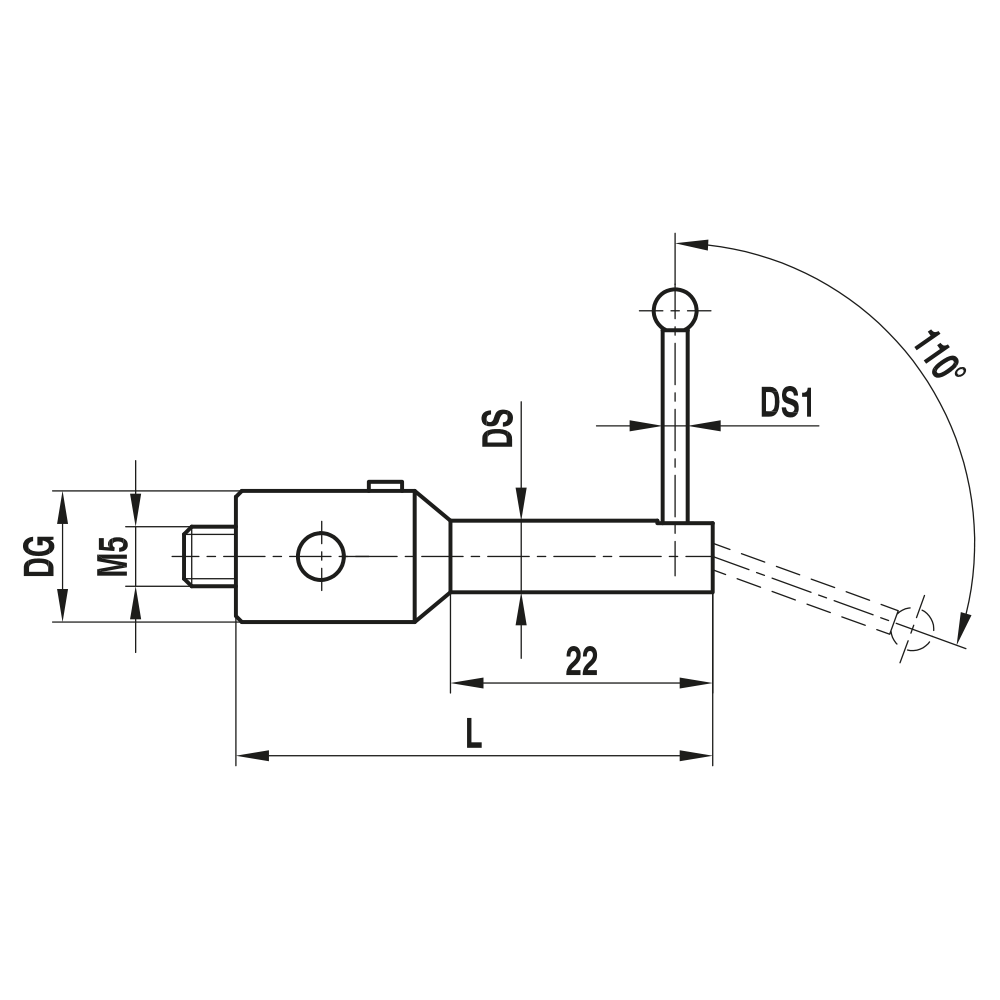

Adaptors / Holders; base: stainless steel
Clamping holders are used in combination with item numbers KKM501010017 and KKM502015028.
Thanks to the integrated clamping function, the stylus can be fixed at any desired angle within a 110° range. Please note that the mentioned styli are not included in the package.
| Thread size: | M5 |
|---|---|
| L: | 40.0 |
| DG: | 11.0 |
| DS: | 6.0 |
| Base Material: | stainless steel |
| Súly: | 15.6 |
| Compatible with: | Renishaw, Zeiss |
| Zeiss No.: | 600341-8180-000 |
| Renishaw-No.: | A-5555-0118 |
