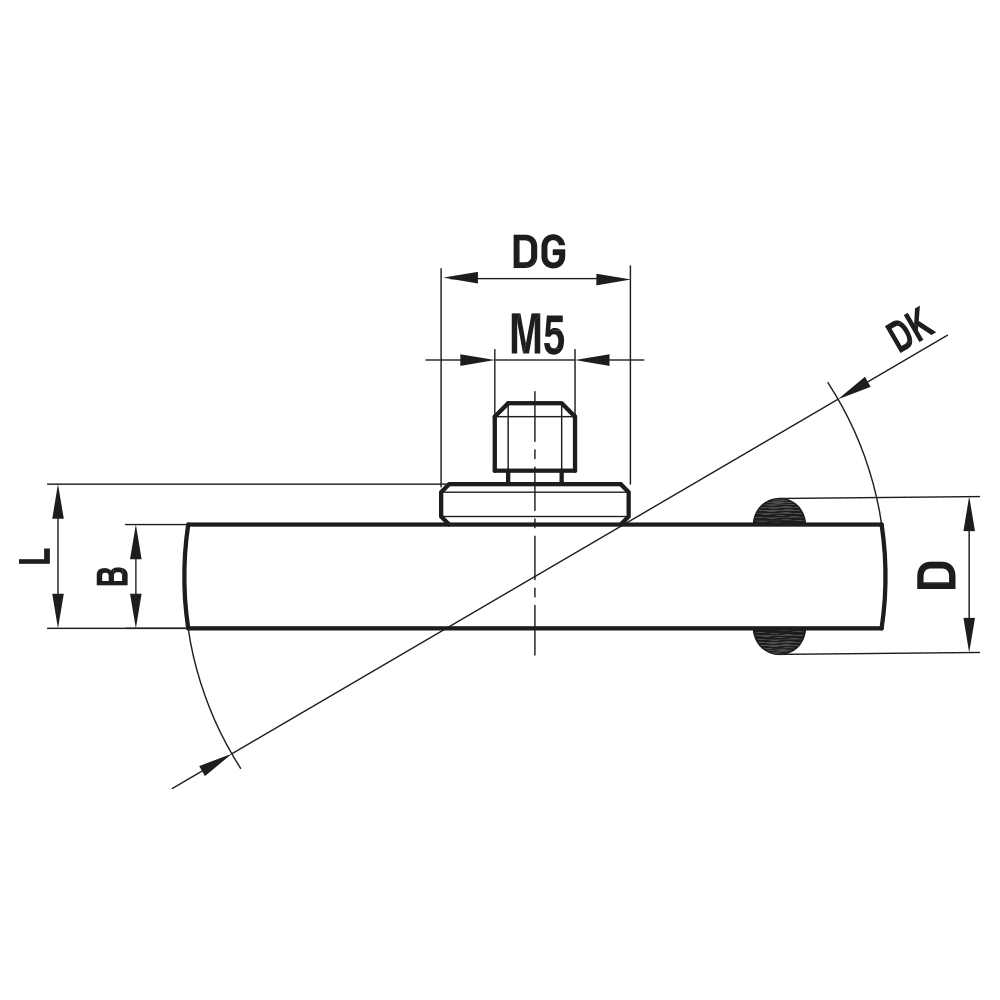

Disc Styli; base: stainless steel; stem: stainless steel; ball: stainless steel / ruby
Styli with monolithic base and stainless steel disc. In addition, ruby balls are mounted on the face to allow measurement of groove width, for example. These styli are often used to measure workpieces made of low hardness materials such as aluminium, plastics or unalloyed steels.
| Thread size: | M5 |
|---|---|
| DK: | 21.0 |
| L: | 5.0 |
| DG: | 7.0 |
| B: | 3.0 |
| D: | 5.0 |
| Base Material: | stainless steel |
| Probe ball material: | stainless steel / ruby |
| Súly: | 9.1 |
| Compatible with: | Renishaw |
| Renishaw-No.: | A-5003-5289 |
