KI M5 040 30 M50
Termékszám:
KIM504030M50
11
Suitable for Zeiss: 602030-0006-000
Suitable for Zeiss: 602030-0006-000

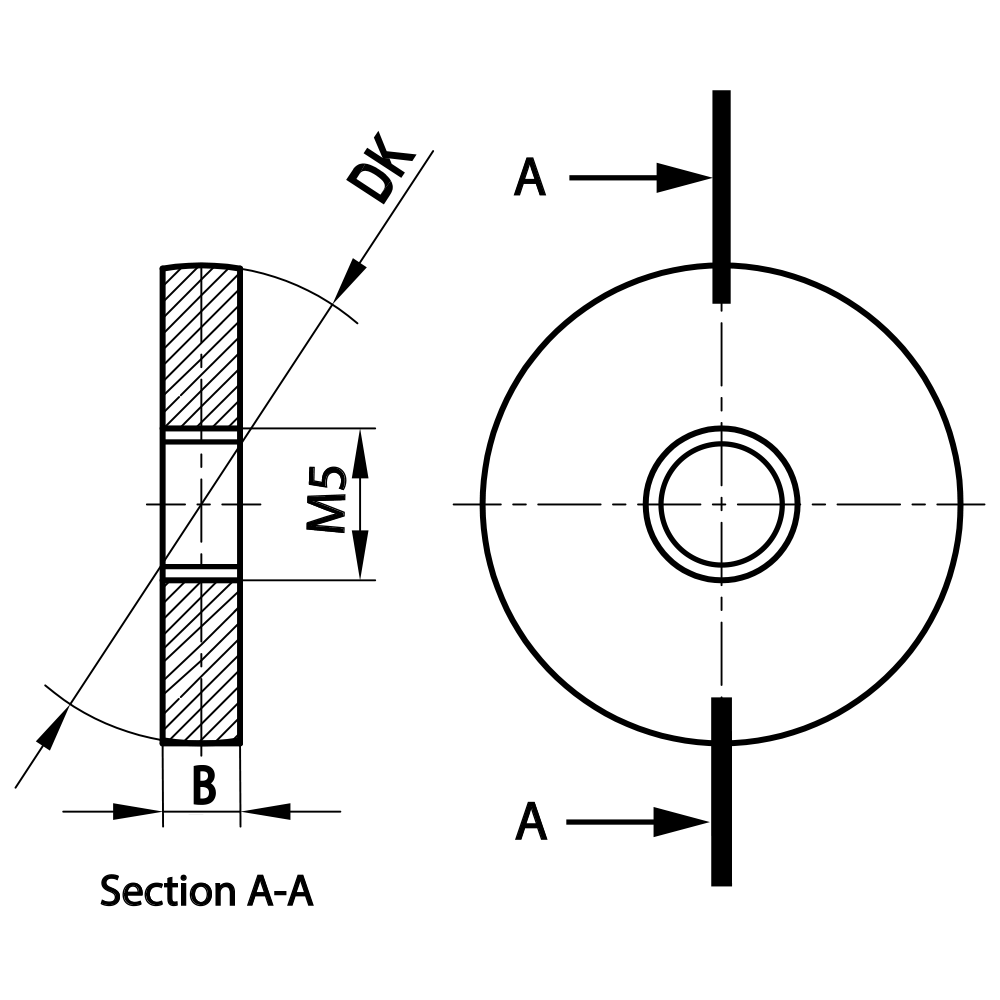

KI M5 040 30 M50
Termékszám:
KIM504030M50
Disc Styli; ball: stainless steel
Hardened stainless steel styli. The M5 internal thread allows direct mounting to e.g. M5 range extensions.
| Thread size: | M5 |
|---|---|
| DK: | 30.0 |
| A: | M5 |
| B: | 4.0 |
| Thread / bore diameter: | M5 |
| Probe ball material: | stainless steel |
| Súly: | 15.7 |
| Compatible with: | Renishaw, Zeiss |
| Zeiss No.: | 602030-0006-000 |
| Renishaw-No.: | A-5555-0198 |
