KI M5 100 07 021
Termékszám:
KIM510007021
11
Suitable for Zeiss: 600341-8090-000
Suitable for Zeiss: 600341-8090-000
KI M5 100 07 021
Termékszám:
KIM510007021

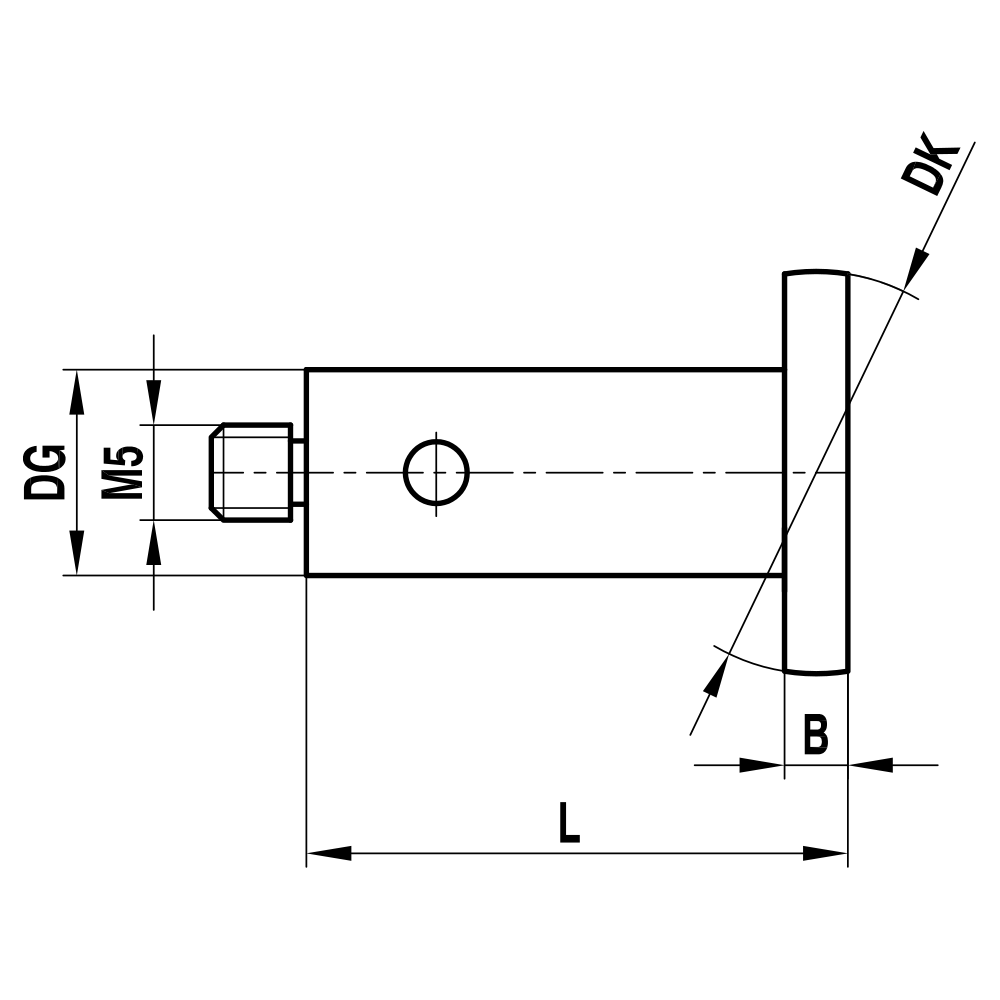

Disc Styli; base: titanium; stem: titanium; ball: stainless steel
Styli with a monolithic titanium body and stainless steel disc. These styli are often used to measure workpieces made of low hardness materials such as aluminium, plastics or unalloyed steels.
| Thread size: | M5 |
|---|---|
| DK: | 10.0 |
| L: | 21.5 |
| DG: | 7.0 |
| B: | 1.5 |
| Base Material: | titanium |
| Probe ball material: | stainless steel |
| Súly: | 3.5 |
| Compatible with: | Renishaw, Zeiss |
| Zeiss No.: | 600341-8090-000 |
| Renishaw-No.: | A-5555-0121 |
