KI M5 100 11 065/2
Termékszám:
KIM510011065/2
11
Suitable for Zeiss: 000000-1019-819
Suitable for Zeiss: 000000-1019-819
KI M5 100 11 065/2
Termékszám:
KIM510011065/2
Disc Styli; base: titanium; stem: carbide; ball: stainless steel
These styli are available with tungsten carbide or stainless steel stem and stainless steel disc. They are often used to measure softer materials such as aluminium, plastics or non-alloy steels.

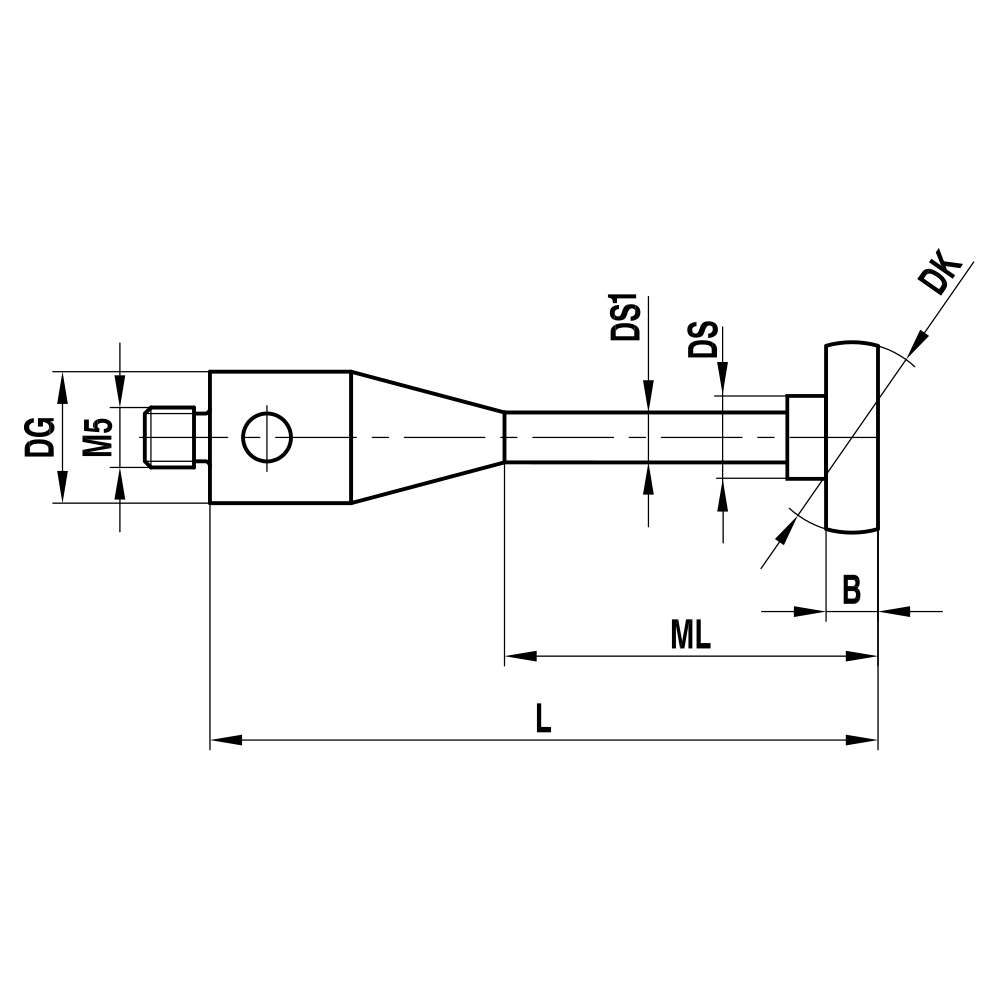

| Thread size: | M5 |
|---|---|
| DK: | 10.0 |
| L: | 65.0 |
| DG: | 11.0 |
| ML: | 55.0 |
| DS: | 5.5 |
| DS (1): | 3.5 |
| B: | 2.0 |
| Stem Material: | carbide |
| Base Material: | titanium |
| Probe ball material: | stainless steel |
| Súly: | 12.8 |
| Compatible with: | Zeiss |
| Zeiss No.: | 000000-1019-819 |
