KI M5 115 11 045
Termékszám:
KIM511511045
11
Suitable for Zeiss: 600341-8160-000
Suitable for Zeiss: 600341-8160-000
KI M5 115 11 045
Termékszám:
KIM511511045
Adaptors / Holders; base: stainless steel

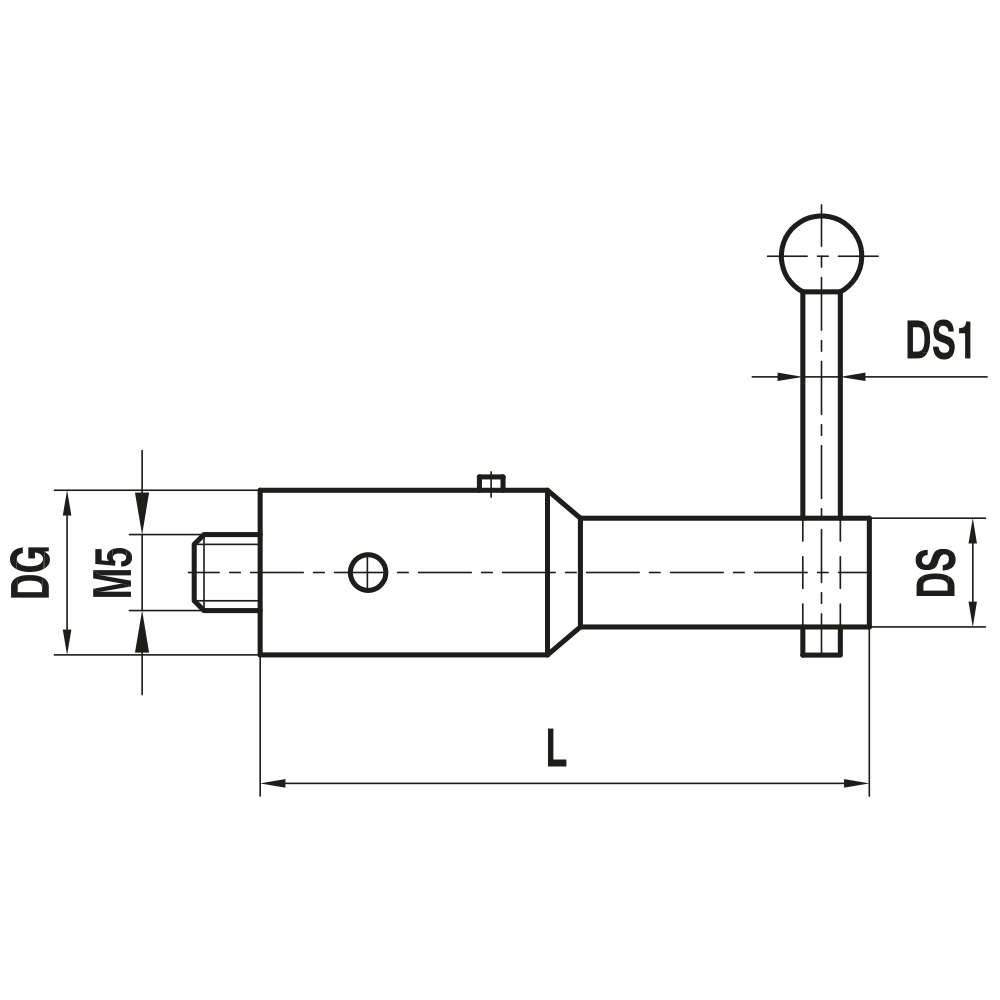

Clamp holders are used in combination with non-threaded probes (type S/T). They allow probes with different ball diameters to be changed quickly and flexibly directly on the measuring device. The probe is clamped at a 90° angle to the holder. Please note that the mentioned styli are not included in the package.
| Thread size: | M5 |
|---|---|
| L: | 45.0 |
| DG: | 11.0 |
| DS: | 6.0 |
| customFields.itp_product_attributes_DS_1: | 0.0 |
| Base Material: | stainless steel |
| Súly: | 18.4 |
| Compatible with: | Renishaw, Zeiss |
| Zeiss No.: | 600341-8160-000 |
| Renishaw-No.: | A-5555-0104 |
