KK M5 020 15 028
Termékszám:
KKM502015028
11
Suitable for Zeiss: 600341-8185-000
Suitable for Zeiss: 600341-8185-000
KK M5 020 15 028
Termékszám:
KKM502015028
Straight Styli; stem: carbide; ball: ruby
Straight stylus for use with KIM502211040.
The ball bearing clamp mechanism allows any angle to be set in an instant.
Ruby balls are available as a touch element.

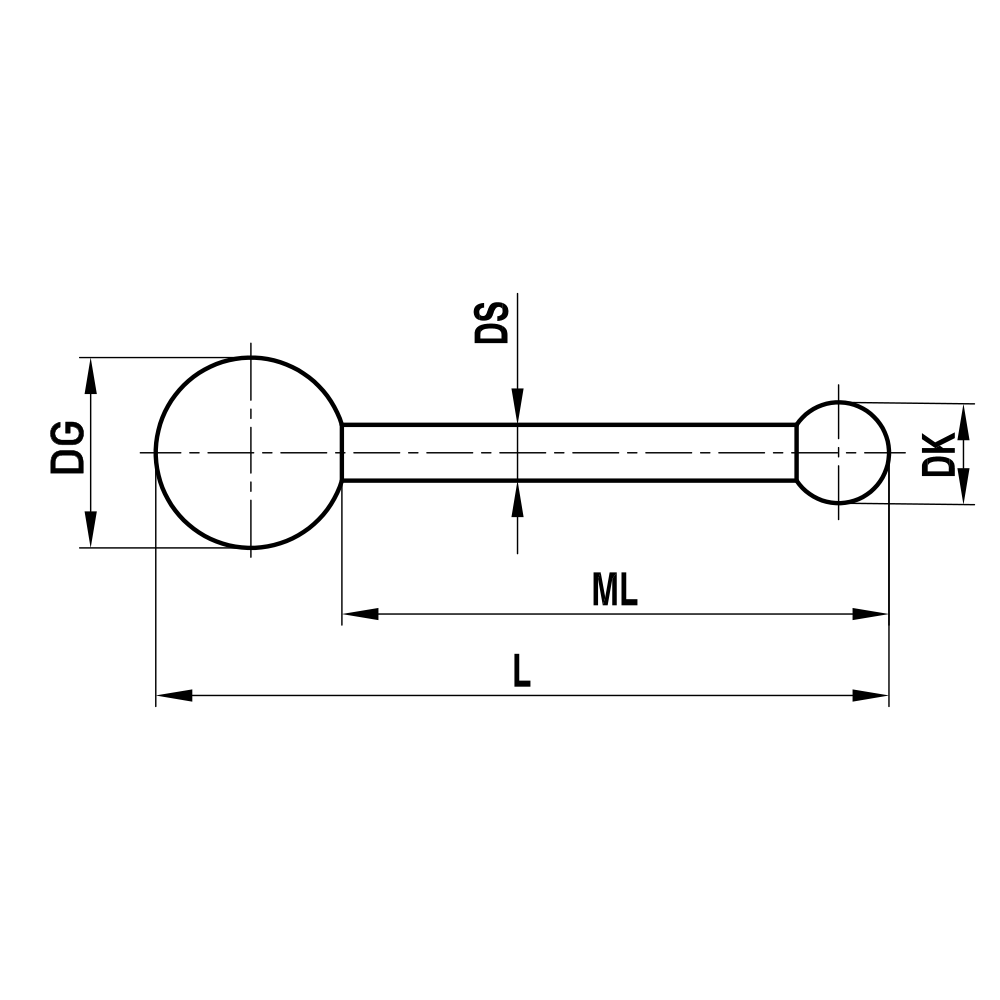

| Thread size: | M5 |
|---|---|
| DK: | 2.0 |
| L: | 28.5 |
| DG: | 4.0 |
| ML: | 24.5 |
| DS: | 1.5 |
| Stem Material: | carbide |
| Probe ball material: | ruby |
| Súly: | 0.9 |
| Compatible with: | Renishaw, Zeiss |
| Zeiss No.: | 600341-8185-000 |
| Renishaw-No.: | A-5555-0120 |
