KN M8 150 24 130
Termékszám:
KNM815024130
11
KN M8 150 24 130
Termékszám:
KNM815024130
Accessories; base: stainless steel; ball: ceramic
Calibration spheres are used to calibrate styli on the CMM. All standard spheres are made of hard-wearing ceramic. A factory certificate detailing the diameter, roughness and roundness of each ball is included.

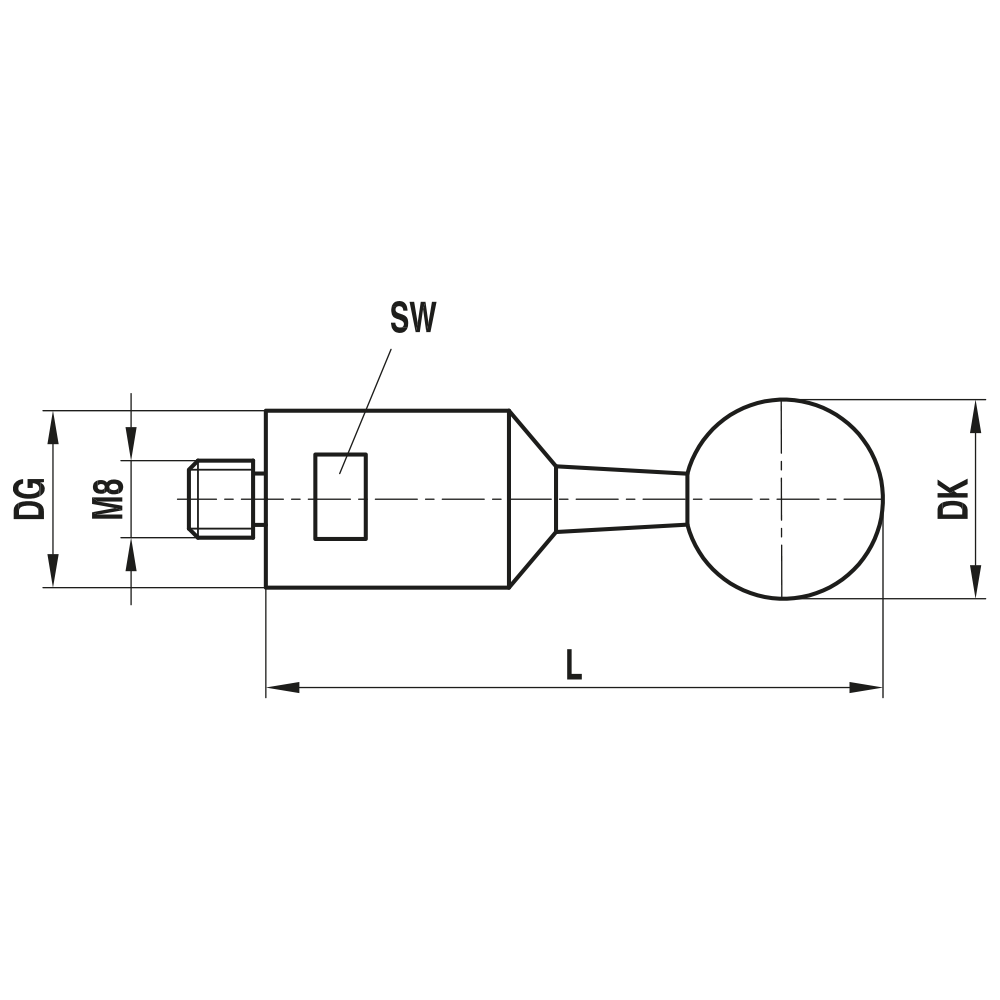

| Thread size: | M8 |
|---|---|
| DK: | 15.0 |
| L: | 130.0 |
| DG: | 24.0 |
| SW:: | 22.0 |
| Base Material: | stainless steel |
| Probe ball material: | ceramic |
| Súly: | 323.7 |
