KT M5 005 02 022
Termékszám:
KTM500502022
11
KT M5 005 02 022
Termékszám:
KTM500502022

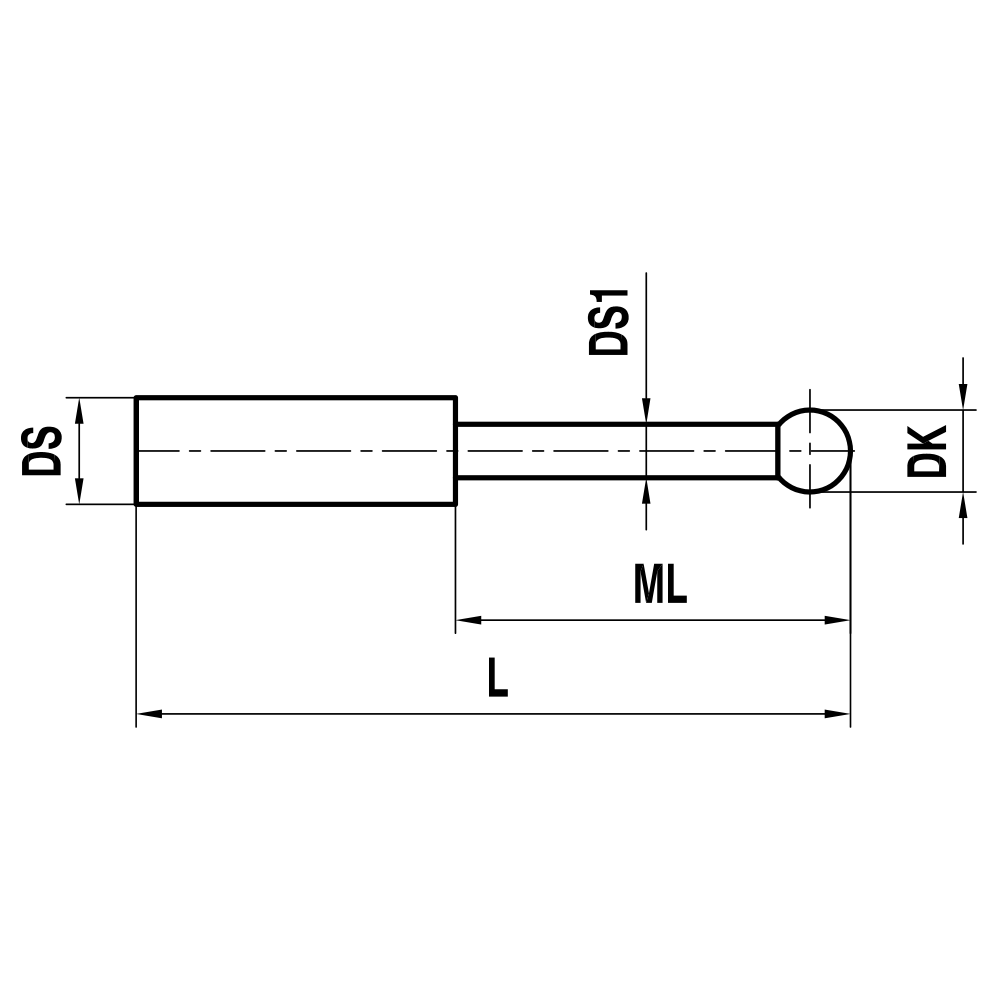

Straight Styli; stem: carbide; ball: ruby
Straight stylus with no thread, which allows for a high degree of flexibility.
The tungsten carbide stem can be single or multi-stepped. The styli can be used with the appropriate clamp holder.
This version is available with ruby balls Ø0,2mm to 5,0mm. Other sizes can be requested via the configurator or by e-mail.
| Thread size: | without |
|---|---|
| DK: | 0.5 |
| L: | 22.25 |
| ML: | 4.25 |
| DS: | 2.0 |
| DS (1): | 0.3 |
| Stem Material: | carbide |
| Probe ball material: | ruby |
| Súly: | 0.8 |
| Compatible with: | Hexagon |
| Hexagon-No.: | M00-694-064-005 |
