KT M5 010 01 016
Termékszám:
KTM501001016
11
Suitable for Zeiss: 600341-8454-000
Suitable for Zeiss: 600341-8454-000
KT M5 010 01 016
Termékszám:
KTM501001016
Straight Styli; stem: carbide; ball: ruby
Straight stylus with no thread, which allows for a high degree of flexibility.
The tungsten carbide stem can be single or multi-stepped. The styli can be used with the appropriate clamp holder.
This version is available with ruby balls Ø0,2mm to 5,0mm. Other sizes can be requested via the configurator or by e-mail.

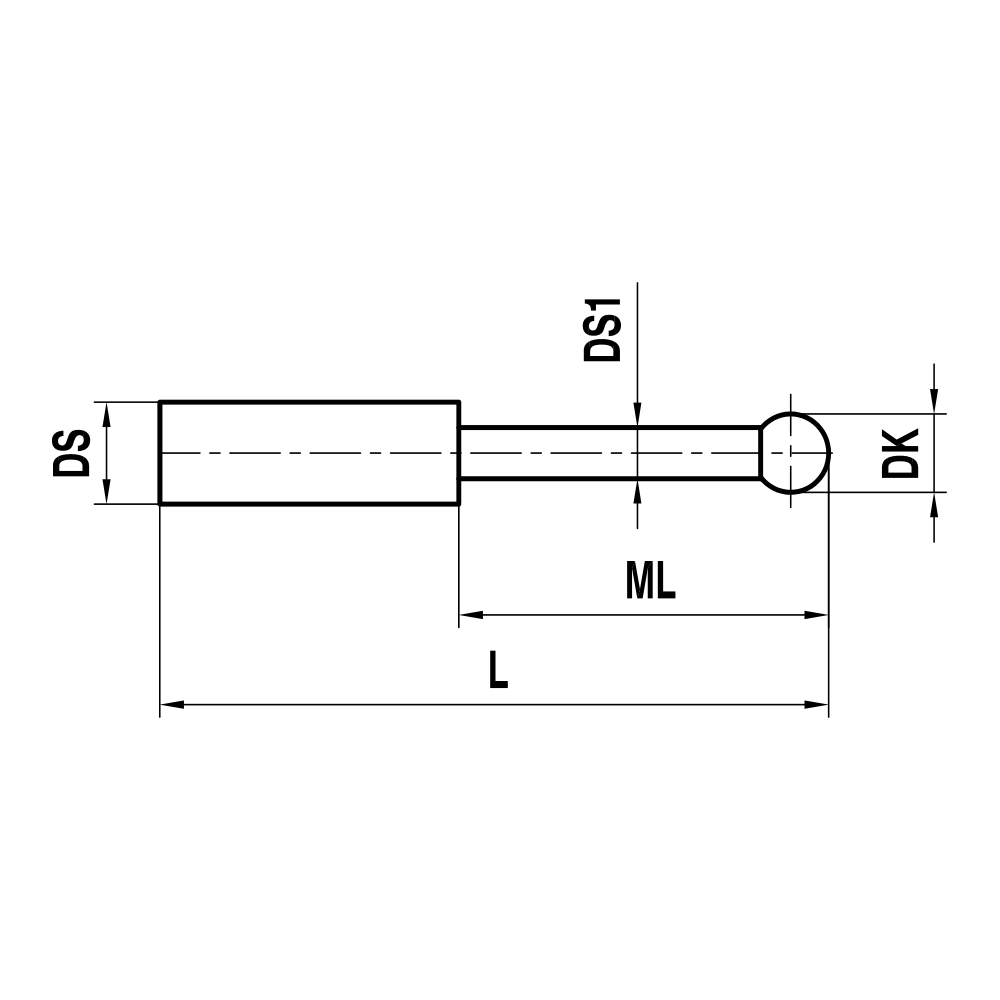

| Thread size: | without |
|---|---|
| DK: | 1.0 |
| L: | 16.0 |
| ML: | 5.0 |
| DS: | 1.0 |
| DS (1): | 0.8 |
| Stem Material: | carbide |
| Probe ball material: | ruby |
| Súly: | 0.2 |
| Compatible with: | Renishaw, Zeiss |
| Zeiss No.: | 600341-8454-000 |
| Renishaw-No.: | A-5003-0809, A-5555-0107 |
