KT M5 015 04 060
Termékszám:
KTM501504060
11
KT M5 015 04 060
Termékszám:
KTM501504060
Straight Styli; stem: carbide; ball: ruby
Straight stylus with no thread, which allows for a high degree of flexibility.
The tungsten carbide stem can be single or multi-stepped. The styli can be used with the appropriate clamp holder.
This version is available with ruby balls Ø0,2mm to 5,0mm. Other sizes can be requested via the configurator or by e-mail.

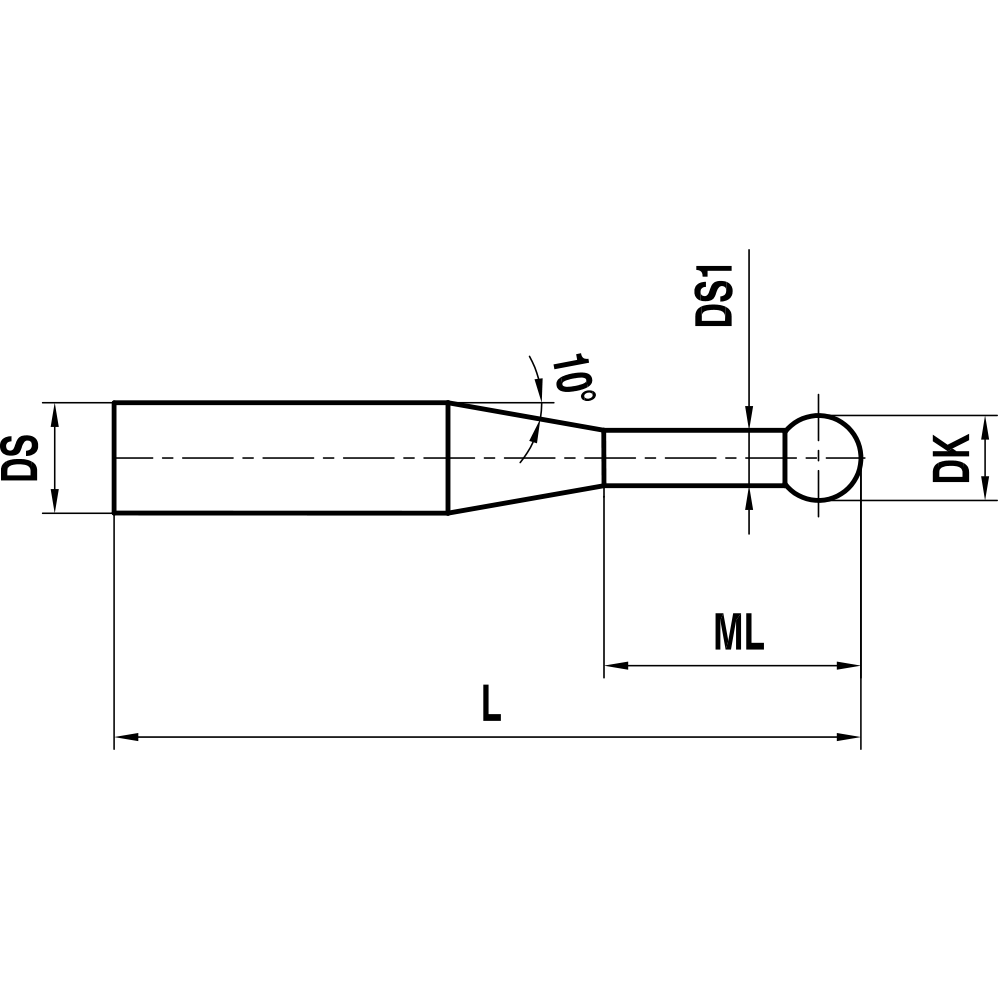

| Thread size: | without |
|---|---|
| DK: | 1.5 |
| L: | 60.75 |
| ML: | 5.25 |
| DS: | 4.0 |
| DS (1): | 1.0 |
| Stem Material: | carbide |
| Probe ball material: | ruby |
| Súly: | 9.2 |
