KT M5 070 04 038
Termékszám:
KTM507004038
11
KT M5 070 04 038
Termékszám:
KTM507004038
Straight Styli; stem: carbide; ball: ruby
Straight stylus with no thread, which allows for a high degree of flexibility.
The tungsten carbide stem can be single or multi-stepped. The styli can be used with the appropriate clamp holder.
This version is available with ruby balls Ø1.35 mm to 10.0mm. Other sizes can be requested via the configurator or by e-mail.

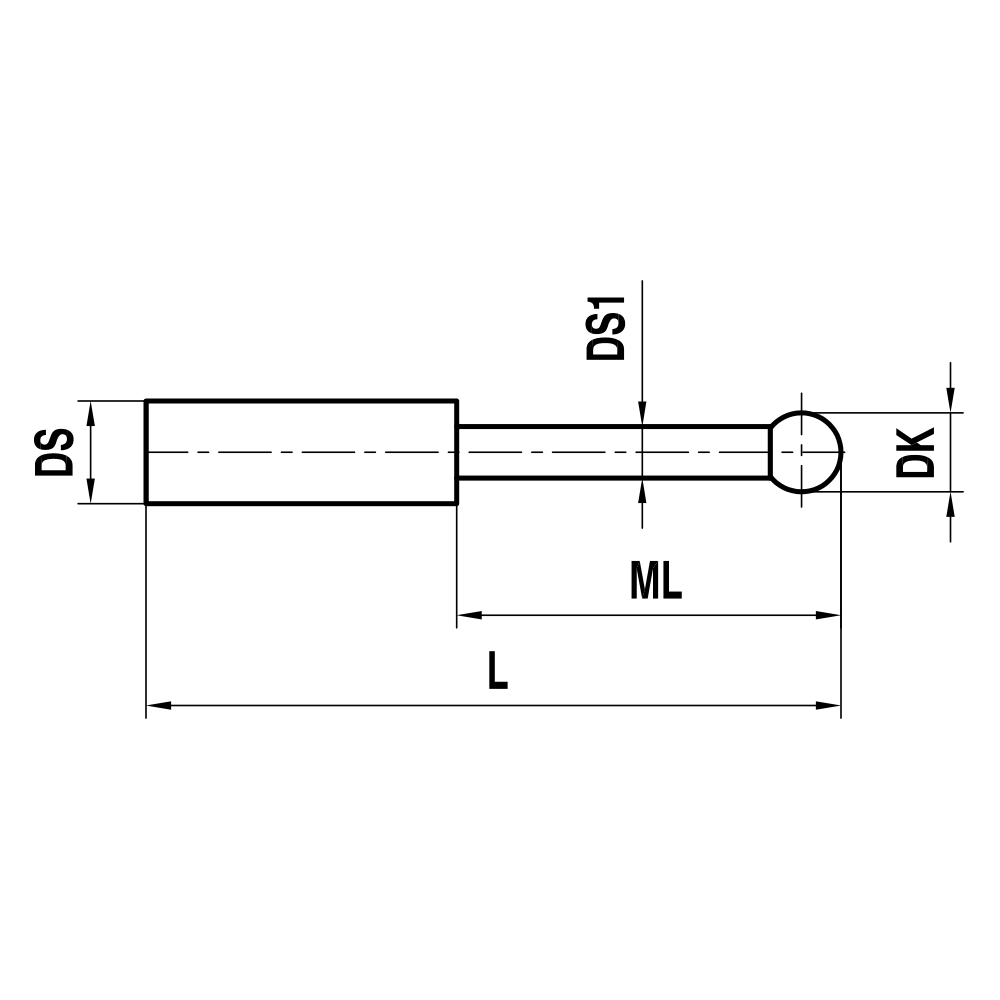

| Thread size: | without |
|---|---|
| DK: | 7.0 |
| L: | 38.5 |
| ML: | 38.5 |
| DS: | 4.0 |
| Stem Material: | carbide |
| Probe ball material: | ruby |
| Súly: | 6.5 |
