LH M5 005 11 022
Termékszám:
LHM500511022
11
Suitable for Zeiss: 600342-8251-000
Suitable for Zeiss: 600342-8251-000
LH M5 005 11 022
Termékszám:
LHM500511022
Straight Styli; base: stainless steel; stem: carbide; ball: ruby
Straight stylus with extended thread for mounting discs and star styli. Grooved and clamping discs are required for the manufacture of star styli.
The tungsten carbide stem is extremely rigid and allows a wide range of dimensions. The stem can be single or multi-stepped.
Ruby balls of the highest quality from Ø0,3mm to Ø1,0mm are used for these styli.
Other dimensions can be requested via the configurator or by e-mail.

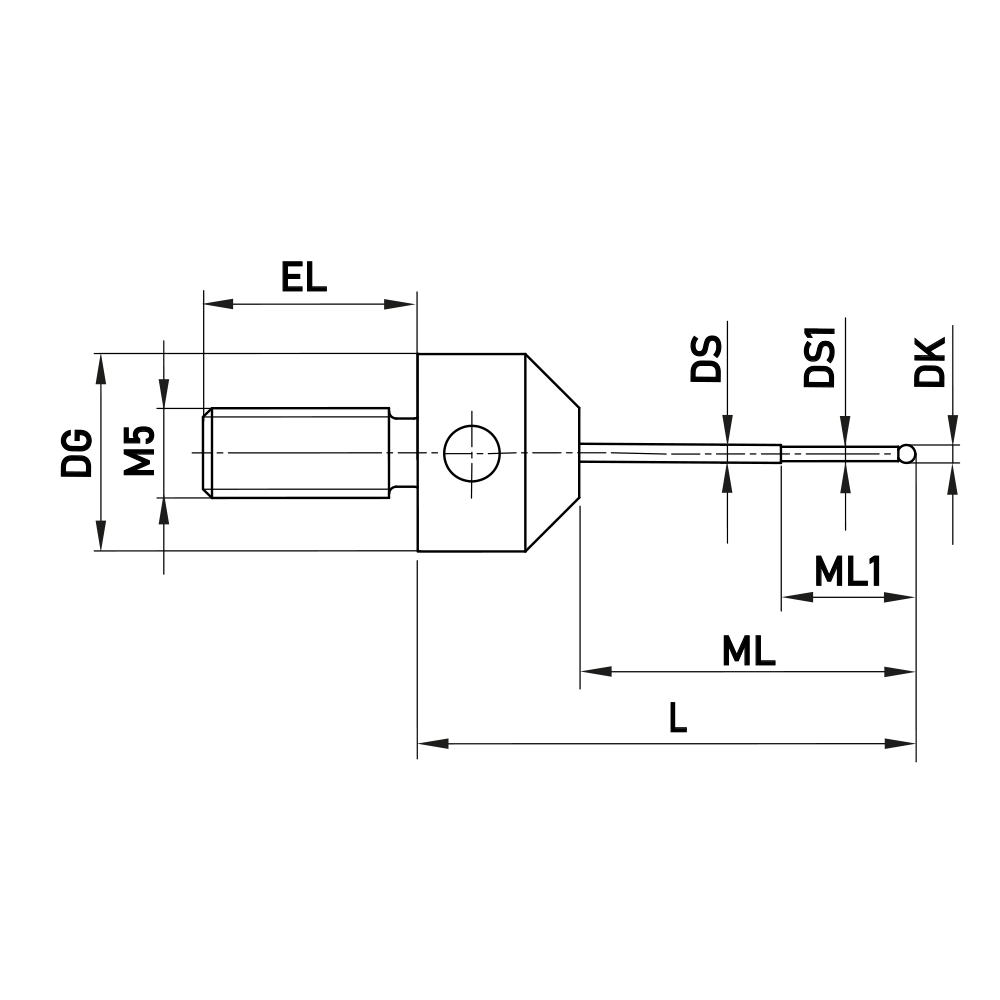

| Thread size: | M5 |
|---|---|
| DK: | 0.5 |
| L: | 22.0 |
| DG: | 11.0 |
| EL: | 12.5 |
| ML: | 13.0 |
| ML (1): | 2.5 |
| DS: | 1.0 |
| DS (1): | 0.3 |
| Stem Material: | carbide |
| Base Material: | stainless steel |
| Probe ball material: | ruby |
| Súly: | 6.6 |
| Compatible with: | Renishaw, Zeiss |
| Zeiss No.: | 600342-8251-000 |
| Renishaw-No.: | A-5555-0085 |
