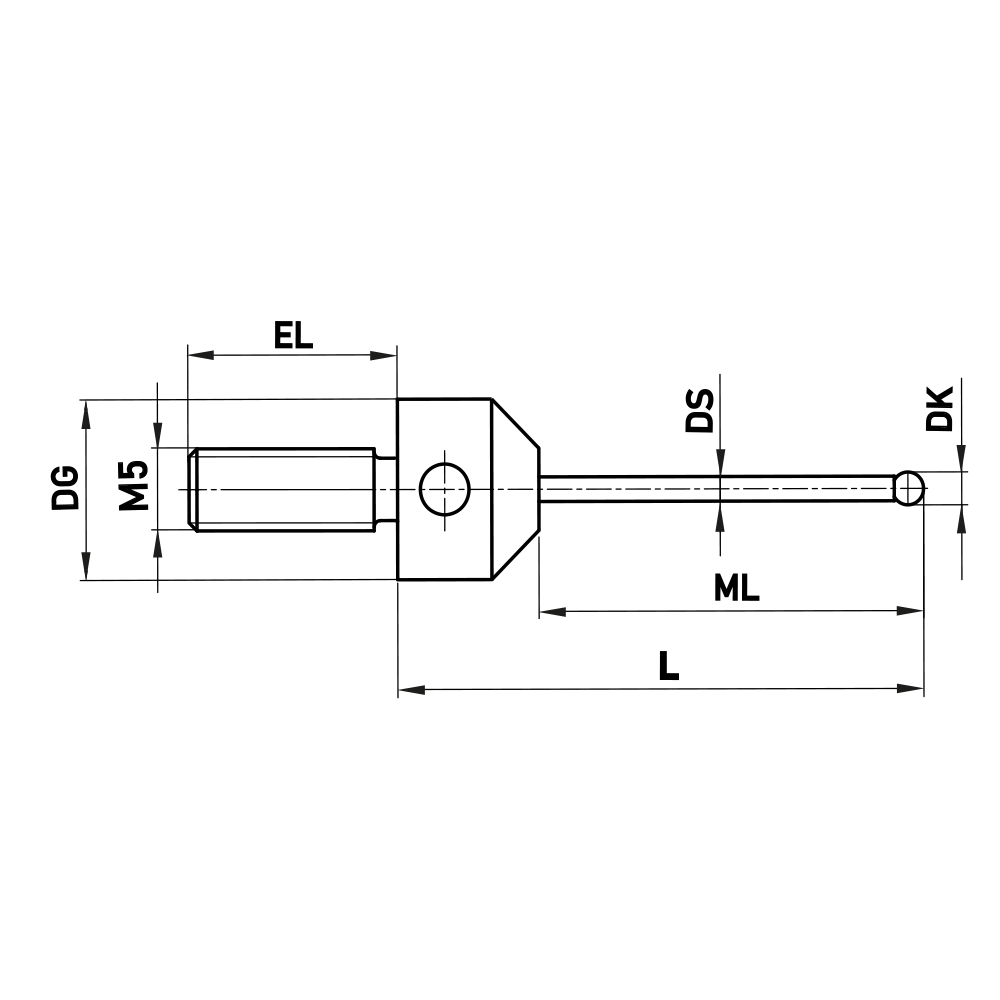

LH M5 030 11 025
Termékszám:
LHM503011025
11
LH M5 030 11 025
Termékszám:
LHM503011025
Straight Styli; base: stainless steel; stem: carbide; ball: ruby
Straight stylus with extended thread for mounting disc and star styli. Grooved and clamping discs are required for the manufacture of star styli.
The tungsten carbide stem is extremely rigid and allows a wide range of dimensions.
Ruby balls of the highest quality from Ø1,35mm to Ø5,0mm are used for these styli.
Other dimensions can be requested via the configurator or by e-mail.
| Thread size: | M5 |
|---|---|
| DK: | 3.0 |
| L: | 25.5 |
| DG: | 11.0 |
| EL: | 12.5 |
| ML: | 16.5 |
| DS: | 2.0 |
| Stem Material: | carbide |
| Base Material: | stainless steel |
| Probe ball material: | ruby |
| Súly: | 7.2 |
