NH M5 020 11 033
Termékszám:
NHM502011033
11
Suitable for Zeiss: 626115-0200-034
Suitable for Zeiss: 626115-0200-034
NH M5 020 11 033
Termékszám:
NHM502011033
Straight Styli; base: stainless steel; stem: carbide; ball: ruby
Straight stylus for everyday standard use.
The extremely rigid carbide stem allows a wide range of dimensions. High quality ruby balls from Ø1,0mm to Ø5,0mm are used for these styli.
Other sizes can be requested via the configurator or by e-mail.

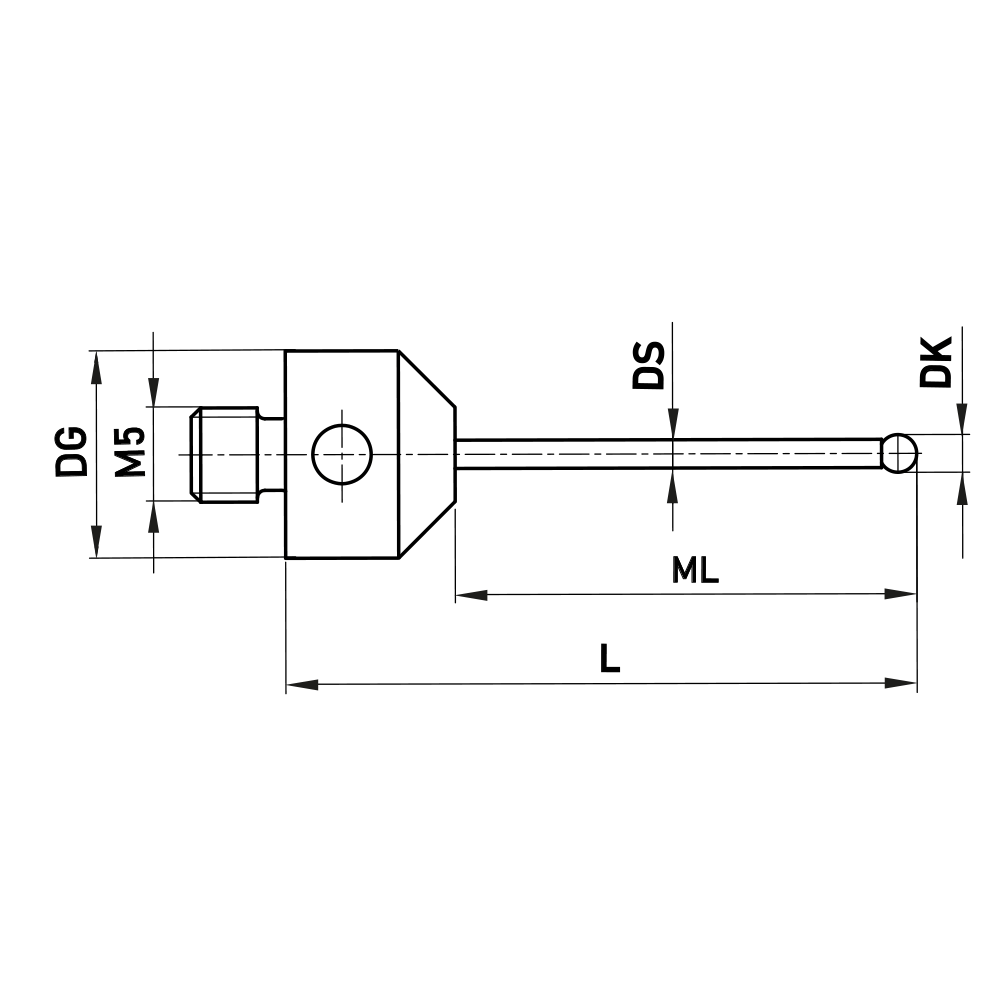

| Thread size: | M5 |
|---|---|
| DK: | 2.0 |
| L: | 33.5 |
| DG: | 11.0 |
| ML: | 24.5 |
| DS: | 1.5 |
| Stem Material: | carbide |
| Base Material: | stainless steel |
| Probe ball material: | ruby |
| Súly: | 6.2 |
| Compatible with: | Zeiss |
| Zeiss No.: | 626115-0200-034 |
