NH M5 K15 11 033
Termékszám:
NHM5K1511033
11
NH M5 K15 11 033
Termékszám:
NHM5K1511033
Straight Styli; base: stainless steel; stem: carbide; ball: ruby
Straight stylus for everyday standard use.
The extremely rigid tungsten carbide stem allows a wide range of dimensions. The stem can be single or multi-stepped.
Ruby balls of the highest quality from Ø0,2mm to Ø1,5mm are used for these styli.
Other sizes can be requested via the configurator or by e-mail.

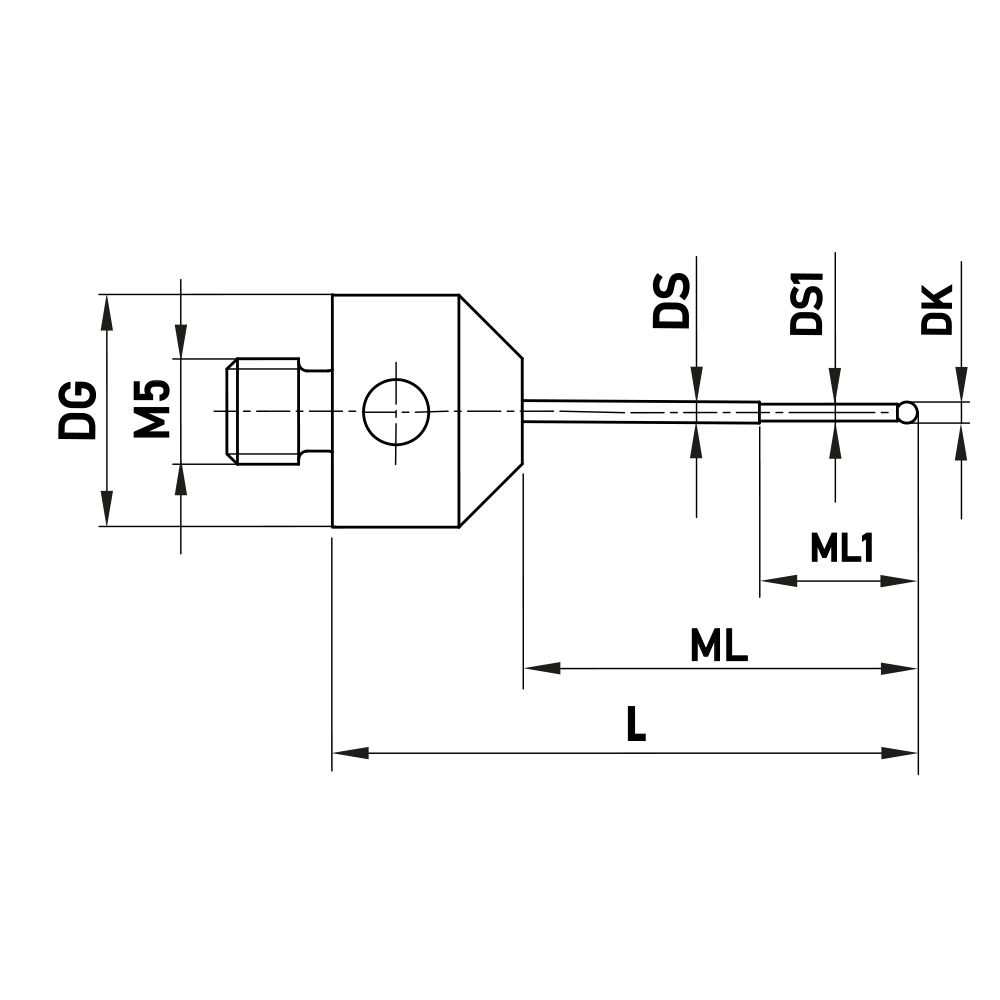

| Thread size: | M5 |
|---|---|
| DK: | 1.5 |
| L: | 33.0 |
| DG: | 11.0 |
| ML: | 24.0 |
| ML (1): | 7.0 |
| DS: | 1.5 |
| DS (1): | 1.0 |
| Stem Material: | carbide |
| Base Material: | stainless steel |
| Probe ball material: | ruby |
| Súly: | 6.1 |
