NH M5 S10 11 022
Termékszám:
NHM5S1011022
11
Suitable for Zeiss: 626115-0104-022
Suitable for Zeiss: 626115-0104-022
NH M5 S10 11 022
Termékszám:
NHM5S1011022
Straight Styli; base: stainless steel; stem: carbide; ball: silicon nitride
Straight stylus for everyday standard use.
The extremely rigid tungsten carbide stem allows a wide range of dimensions. The stem can be single or multi-stepped.
Ruby balls of the highest quality from Ø0,2mm to Ø1,5mm are used for these styli.
Other sizes can be requested via the configurator or by e-mail.

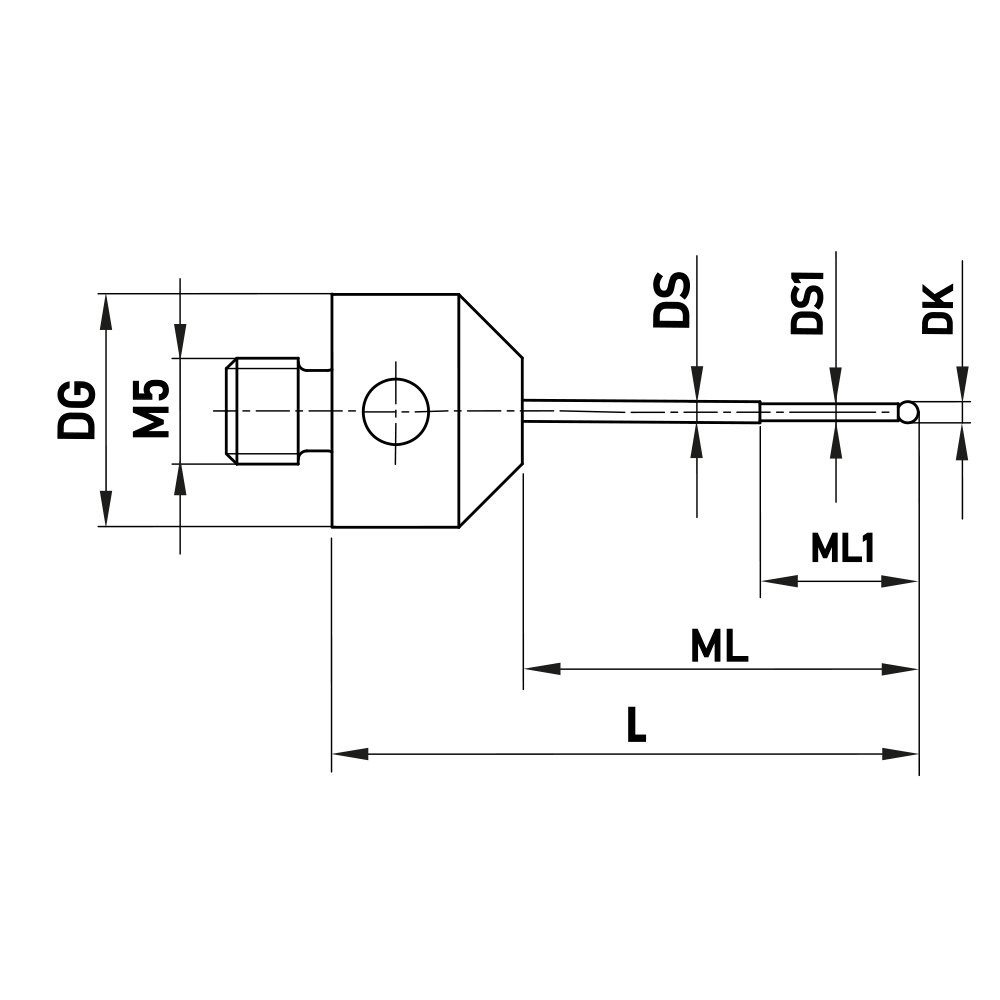

| Thread size: | M5 |
|---|---|
| DK: | 1.0 |
| L: | 22.5 |
| DG: | 11.0 |
| ML: | 13.5 |
| ML (1): | 5.0 |
| DS: | 1.0 |
| DS (1): | 0.8 |
| Stem Material: | carbide |
| Base Material: | stainless steel |
| Probe ball material: | silicon nitride |
| Súly: | 5.7 |
| Compatible with: | Zeiss |
| Zeiss No.: | 626115-0104-022 |
