NH M5 S25 11 034
Termékszám:
NHM5S2511034
11
NH M5 S25 11 034
Termékszám:
NHM5S2511034
Straight Styli; base: stainless steel; stem: carbide; ball: silicon nitride
Straight stylus for everyday standard use.
The extremely rigid carbide stem allows a wide range of dimensions.
Depending on the measurement system, styli with Ø10,0 mm, Ø11,0 mm and Ø12,0 mm holders are available in this group.
The silicon nitride balls are particularly recommended for scanning untreated aluminium workpieces.
In this product group you will find styli with ball sizes from Ø1,5mm to Ø10,0mm.
Other sizes can be requested via the configurator or by e-mail.

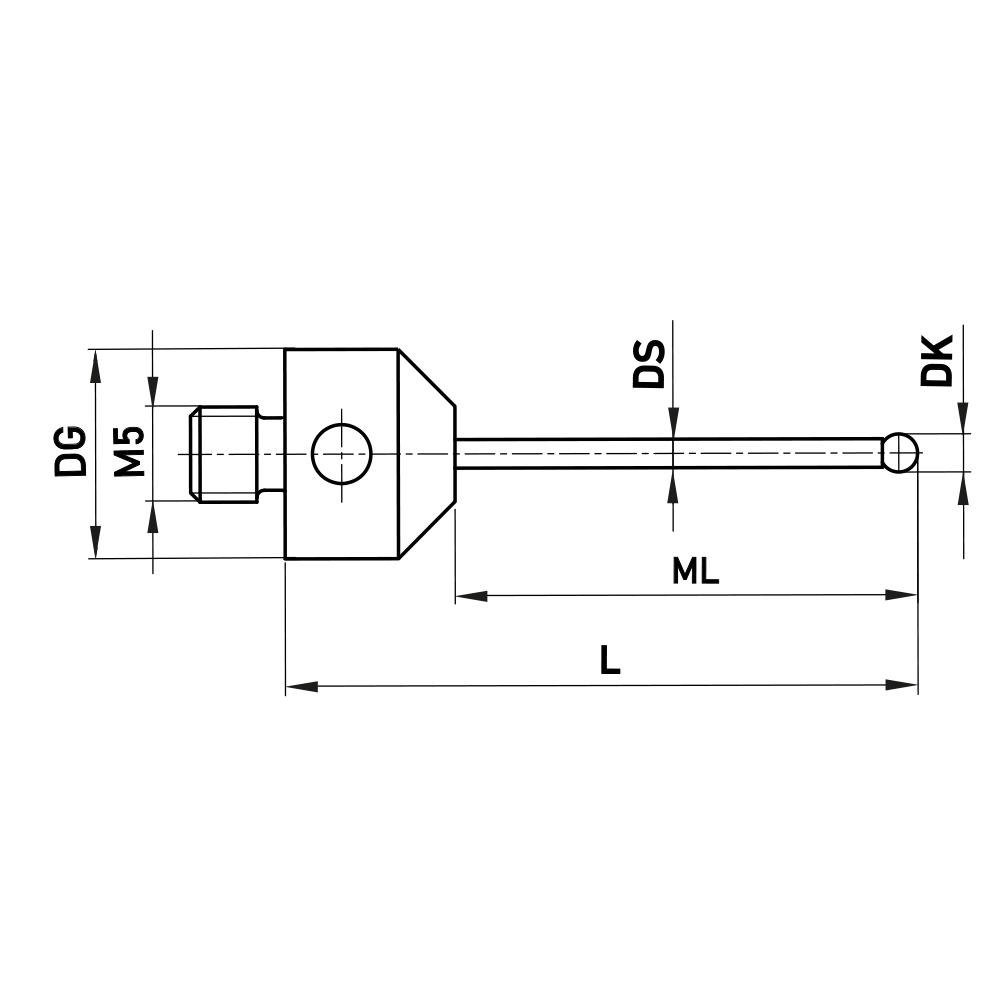

| Thread size: | M5 |
|---|---|
| DK: | 2.5 |
| L: | 34.0 |
| DG: | 11.0 |
| ML: | 25.0 |
| DS: | 1.0 |
| Stem Material: | carbide |
| Base Material: | stainless steel |
| Probe ball material: | silicon nitride |
| Súly: | 6.2 |
