RK M4 300 07 075
Termékszám:
RKM430007075
11
RK M4 300 07 075
Termékszám:
RKM430007075

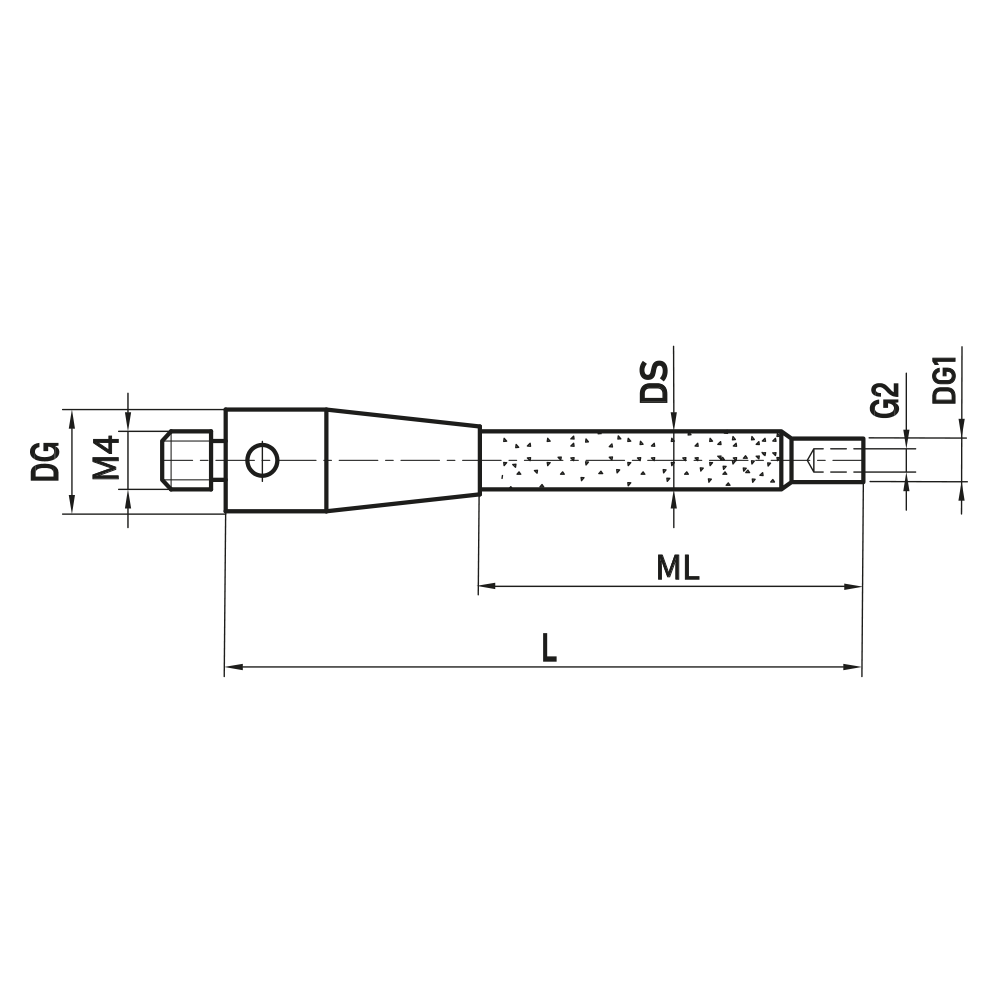

Adaptors / Holders; base: stainless steel; stem: ceramic
Thread adaptors are used to connect components with different thread connections. The adaptors allow the entire product range to be combined within the technical requirements of the instrument.
| Thread size: | M4 |
|---|---|
| L: | 75.0 |
| DG: | 7.0 |
| DG (1): | 4.0 |
| ML: | 58.5 |
| DS: | 4.5 |
| G (2): | M3 |
| Stem Material: | ceramic |
| Base Material: | stainless steel |
| Súly: | 5.1 |
| Compatible with: | Renishaw |
| Renishaw-No.: | A-5000-7752 |
