SI M2 020 06 032
Termékszám:
SIM202006032
11
Suitable for Zeiss: 602030-8011-000
Suitable for Zeiss: 602030-8011-000
SI M2 020 06 032
Termékszám:
SIM202006032
Star Styli; base: stainless steel; stem: stainless steel; ball: ruby

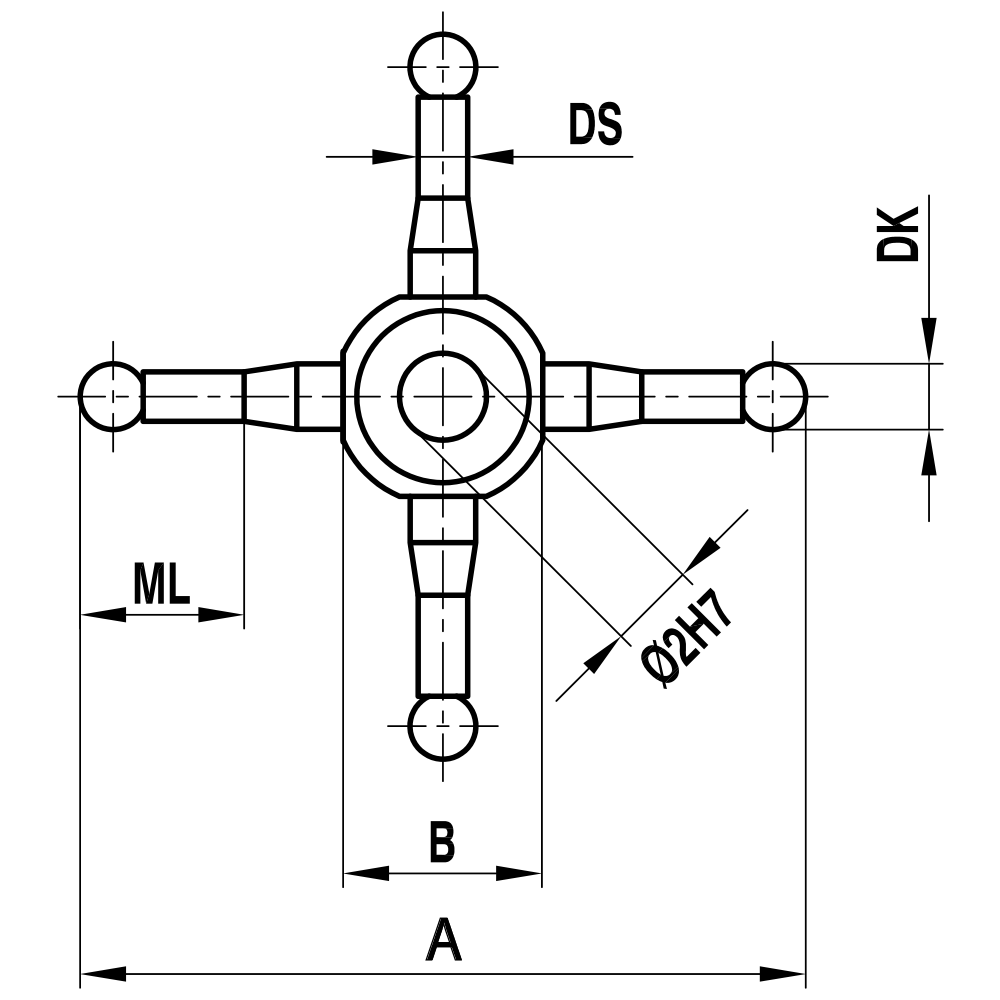

This product group includes star styli with four arms arranged at 90° to each other and to the screw axis. These styli are often referred to as 'cube star' styli. Styli with ruby balls are available in sizes from Ø 1.0 to Ø 3.5 mm.
| Thread size: | M2 |
|---|---|
| DK: | 2.0 |
| L: | 32.0 |
| ML: | 9.5 |
| DS: | 3.0 |
| A: | 32.0 |
| B: | 5.5 |
| Stem Material: | stainless steel |
| Base Material: | stainless steel |
| Probe ball material: | ruby |
| Súly: | 1.3 |
| Compatible with: | Renishaw, Zeiss |
| Zeiss No.: | 602030-8011-000 |
| Renishaw-No.: | A-5555-0294 |
