TC M2 030 03 031
Termékszám:
TCM203003031
11
TC M2 030 03 031
Termékszám:
TCM203003031

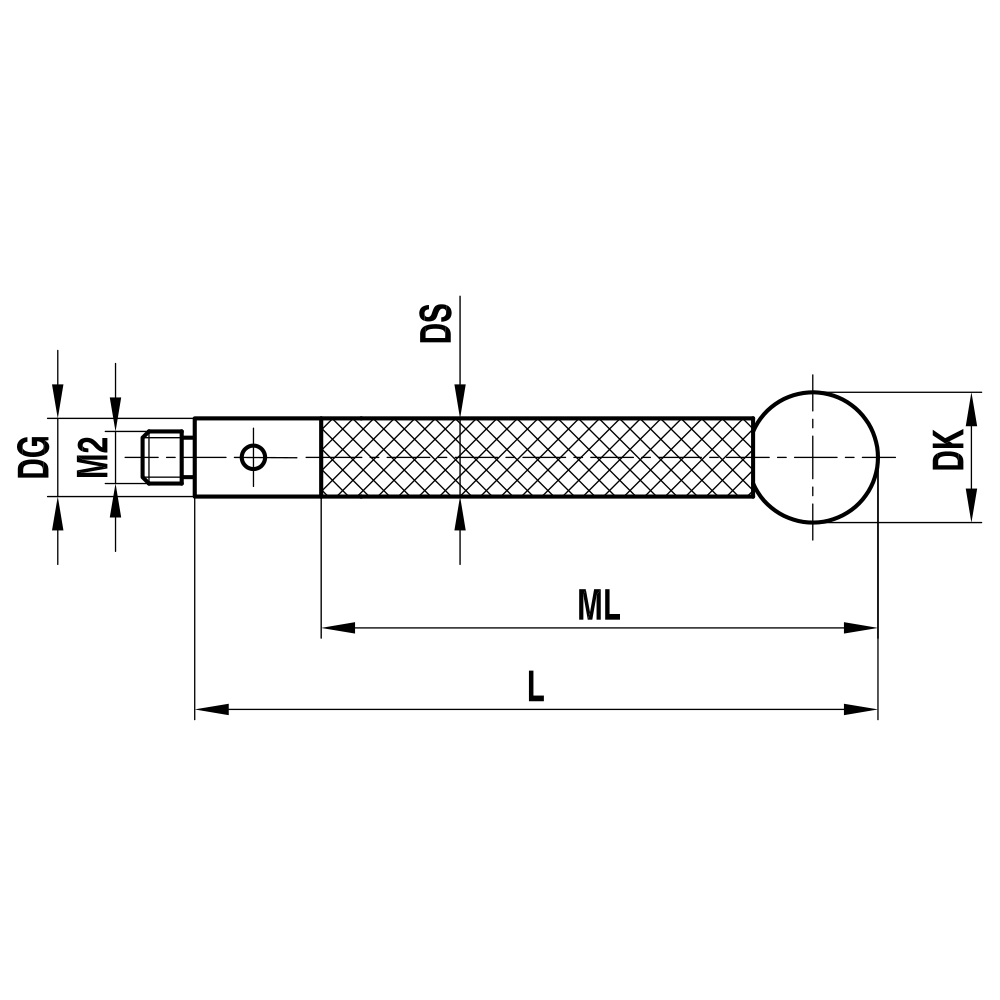

Straight Styli; base: stainless steel; stem: carbon fiber; ball: ruby
Straight stylus with low weight and extreme rigidity.
The carbon fibre stem with its excellent physical properties is mainly used for styli with excess length.
High quality ruby balls from Ø3,0mm to Ø12,0mm are used for these styli.
Other dimensions can be requested via the configurator or by e-mail.
| Thread size: | M2 |
|---|---|
| DK: | 3.0 |
| L: | 31.5 |
| DG: | 3.0 |
| ML: | 24.0 |
| DS: | 2.0 |
| Stem Material: | carbon fiber |
| Base Material: | stainless steel |
| Probe ball material: | ruby |
| Súly: | 0.5 |
| Compatible with: | Renishaw |
| Renishaw-No.: | A-5003-3584 |
