TC M2 040 03 032
Termékszám:
TCM204003032
11
TC M2 040 03 032
Termékszám:
TCM204003032
Straight Styli; base: stainless steel; stem: carbon fiber; ball: ruby
Straight stylus with low weight and extreme rigidity.
The carbon fibre stem with its excellent physical properties is mainly used for styli with excess length.
High quality ruby balls from Ø3,0mm to Ø12,0mm are used for these styli.
Other dimensions can be requested via the configurator or by e-mail.

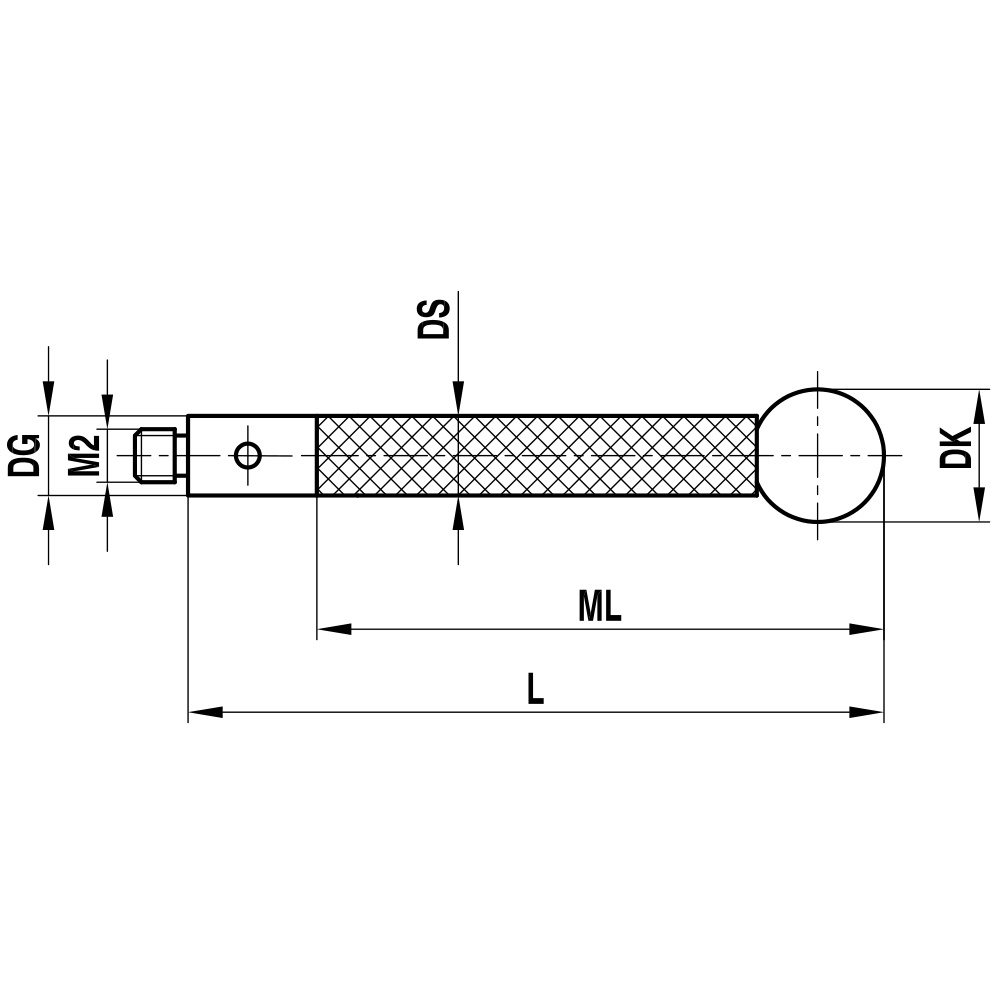

| Thread size: | M2 |
|---|---|
| DK: | 4.0 |
| L: | 32.0 |
| DG: | 3.0 |
| ML: | 24.5 |
| DS: | 2.0 |
| Stem Material: | carbon fiber |
| Base Material: | stainless steel |
| Probe ball material: | ruby |
| Súly: | 0.5 |
| Compatible with: | Renishaw |
| Renishaw-No.: | A-5003-4241 |
