TC M2 060 03 103
Termékszám:
TCM206003103
11
Suitable for Zeiss: 000000-1776-920
Suitable for Zeiss: 000000-1776-920
TC M2 060 03 103
Termékszám:
TCM206003103
Straight Styli; base: stainless steel; stem: carbon fiber; ball: ruby
Straight stylus with low weight and extreme rigidity.
The carbon fiber stem with its excellent physical properties is mainly used for styli with excess length.
Ruby balls of the highest quality from Ø4,0mm to Ø6,0mm are used for these styli.
Other dimensions can be requested via the configurator or by e-mail.

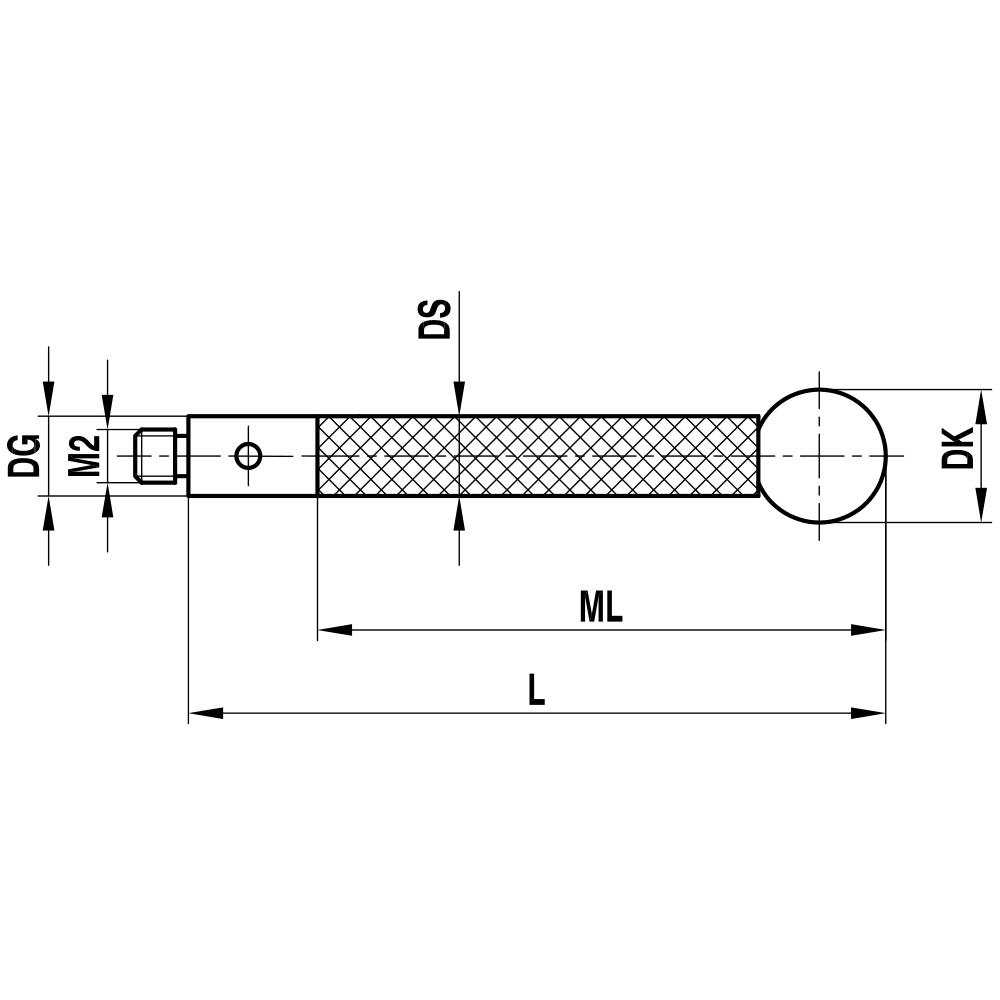

| Thread size: | M2 |
|---|---|
| DK: | 6.0 |
| L: | 103.0 |
| DG: | 3.0 |
| ML: | 93.0 |
| DS: | 3.0 |
| Stem Material: | carbon fiber |
| Base Material: | stainless steel |
| Probe ball material: | ruby |
| Súly: | 1.7 |
| Compatible with: | Renishaw, Zeiss |
| Zeiss No.: | 000000-1776-920 |
| Renishaw-No.: | A-5003-2291 |
