TC M2 S60 03 053
Termékszám:
TCM2S6003053
11
TC M2 S60 03 053
Termékszám:
TCM2S6003053
Straight Styli; base: stainless steel; stem: carbon fiber; ball: silicon nitride
Straight stylus with low weight and extreme rigidity.
The carbon fiber stem, with its excellent physical properties, is mainly used for styli with excess length.
The silicon nitride balls are particularly suitable for scanning untreated aluminum workpieces.
Other dimensions can be requested via the configurator or by e-mail.

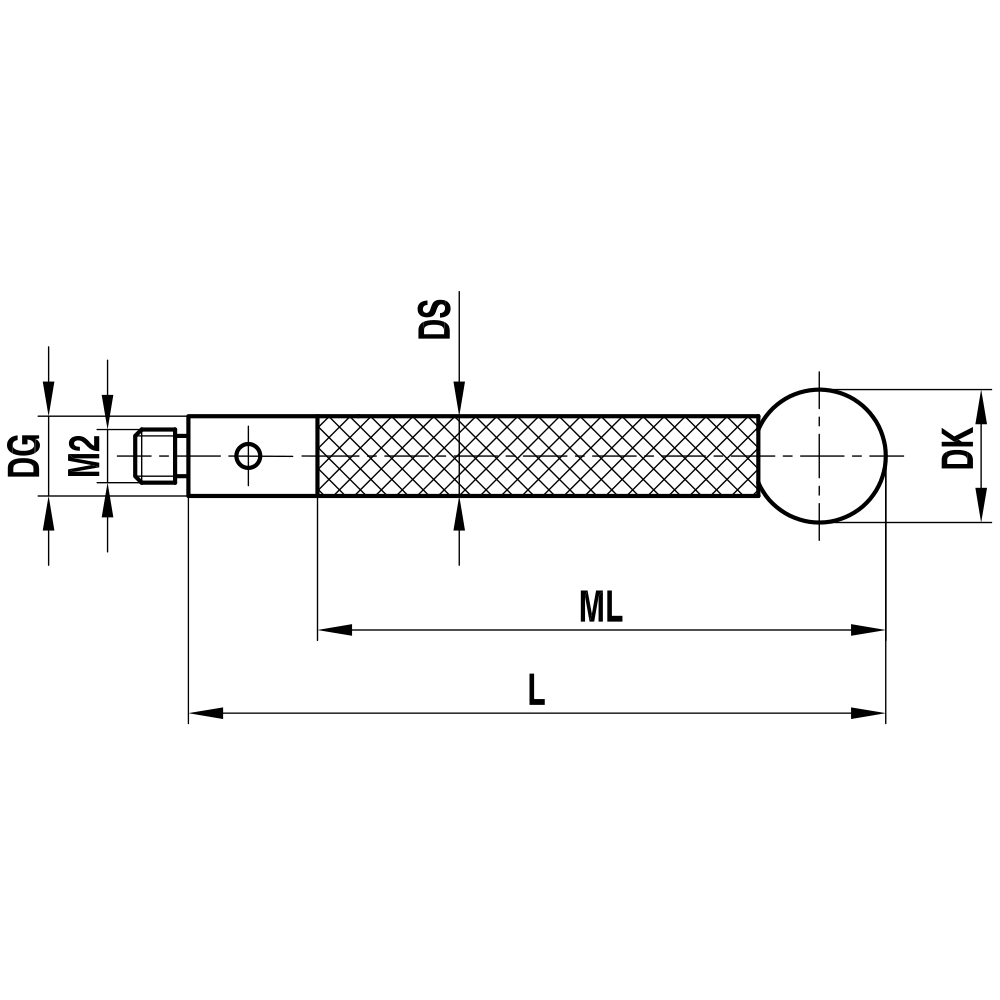

| Thread size: | M2 |
|---|---|
| DK: | 6.0 |
| L: | 53.0 |
| DG: | 3.0 |
| ML: | 45.0 |
| DS: | 3.0 |
| Stem Material: | carbon fiber |
| Base Material: | stainless steel |
| Probe ball material: | silicon nitride |
| Súly: | 1.2 |
| Compatible with: | Renishaw |
| Renishaw-No.: | A-5004-1972 |
