TC M3 030 05 025
Termékszám:
TCM303005025
11
Suitable for Zeiss: 626103-0300-025, 626103-0301-025
Suitable for Zeiss: 626103-0300-025, 626103-0301-025
TC M3 030 05 025
Termékszám:
TCM303005025

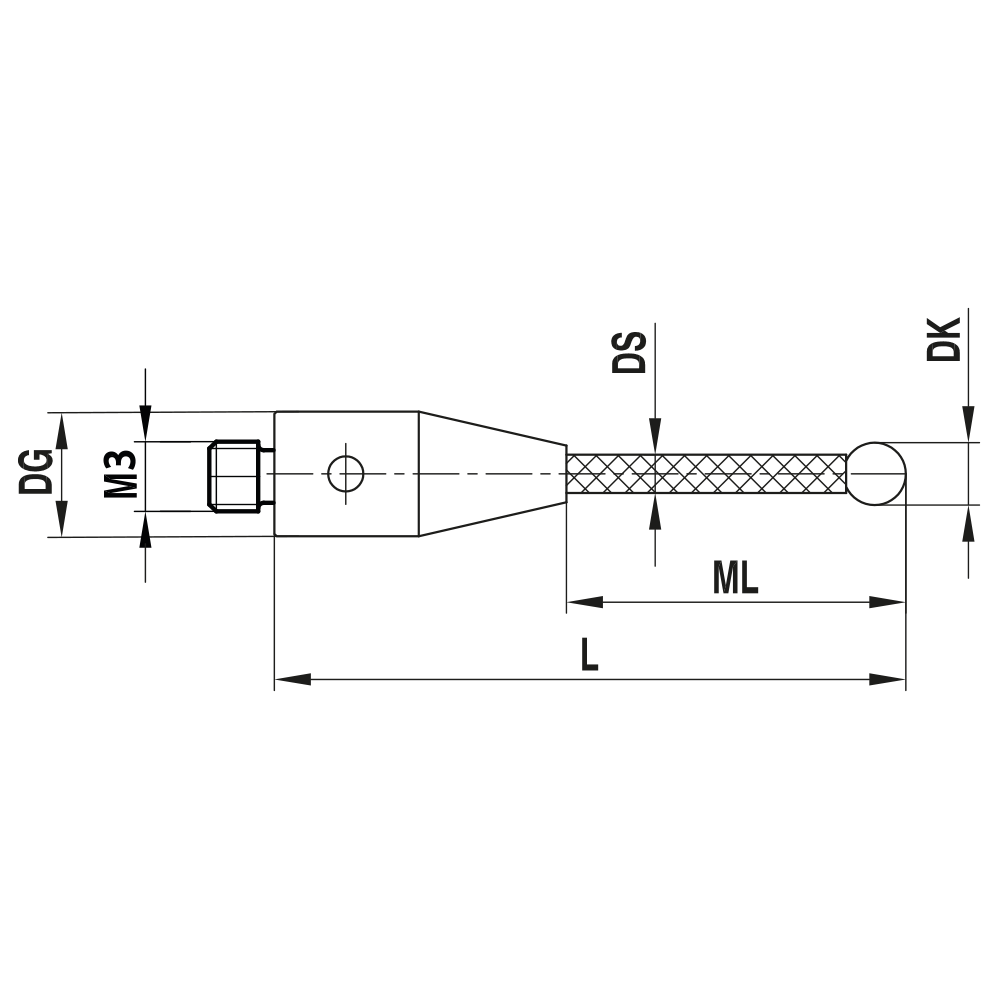

Straight Styli; base: titanium; stem: carbon fiber; ball: ruby
Straight stylus with low weight and extreme rigidity.
The carbon fibre stem with its excellent physical properties is mainly used for styli with excess length.
High quality ruby balls from Ø3,0mm to Ø12,0mm are used for these styli.
Other dimensions can be requested via the configurator or by e-mail.
| Thread size: | M3 XXT |
|---|---|
| DK: | 3.0 |
| L: | 25.0 |
| DG: | 5.0 |
| ML: | 16.0 |
| DS: | 2.0 |
| Stem Material: | carbon fiber |
| Base Material: | titanium |
| Probe ball material: | ruby |
| Súly: | 0.7 |
| Compatible with: | Renishaw, Zeiss |
| Zeiss No.: | 626103-0300-025, 626103-0301-025 |
| Renishaw-No.: | A-5004-0924 |
