TC M3 030 05 040/2,0
Termékszám:
TCM303005040/2,0
11
Suitable for Zeiss: 626103-0300-040
Suitable for Zeiss: 626103-0300-040
TC M3 030 05 040/2,0
Termékszám:
TCM303005040/2,0
Straight Styli; base: titanium; stem: carbon fiber; ball: ruby
Straight stylus with low weight and extreme rigidity.
The carbon fibre stem with its excellent physical properties is mainly used for styli with excess length.
High quality ruby balls from Ø3,0mm to Ø12,0mm are used for these styli.
Other dimensions can be requested via the configurator or by e-mail.

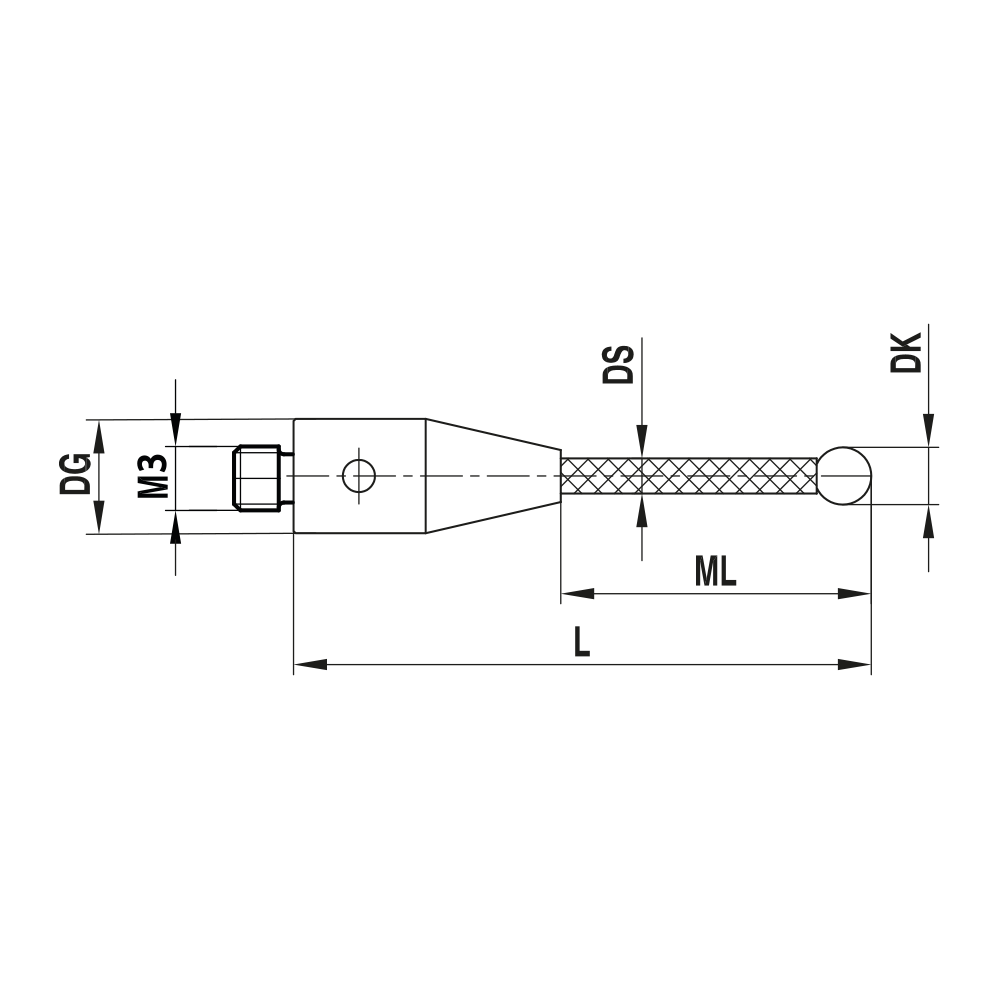

| Thread size: | M3 XXT |
|---|---|
| DK: | 3.0 |
| L: | 40.0 |
| DG: | 5.0 |
| ML: | 31.0 |
| DS: | 2.0 |
| Stem Material: | carbon fiber |
| Base Material: | titanium |
| Probe ball material: | ruby |
| Súly: | 0.8 |
| Compatible with: | Zeiss |
| Zeiss No.: | 626103-0300-040 |
